T1 Shuttering System

Shuttering System T1 (Class B)

PAFILI shuttering system has a high load-bearing capacity and can be applied to any construction project.

Complete Tower 1.20 x 1.55m consists of
- Frames 1.20 x 1.80m, Ø 48.8 x 4mm
- Frames 1.20 x 1.20m, Ø 48.8 x 4mm
- Base and head jacks Ø 40 x 5mm, 0.70m long
Minimum height of 1.80 x 1.20 tower: 1.95m
Maximum height of 1.80 x 1.20 tower: 2.85m
(Primary and secondary beams on head jacks are not included)
Quality of steel: S235 & S355

The Couplers are made in accordance with EN 74-1.

All products can be also supplied in galvanized steel.

Products Catalog

Shuttering System T1

401 Frame 1.80 X 1.20 m

402 Diagonal Cross Brace 2.10 m

(Ø27 X 2 mm)

403 Frame 1.20 X 1.20 m

404 Diagonal Cross Brace 1.75m

(Ø27 X 2 mm)

405 Head Jack 11 cm

(Ø40 X 5 mm)

406 Head Jack 17 cm

(Ø40 X 5 mm)

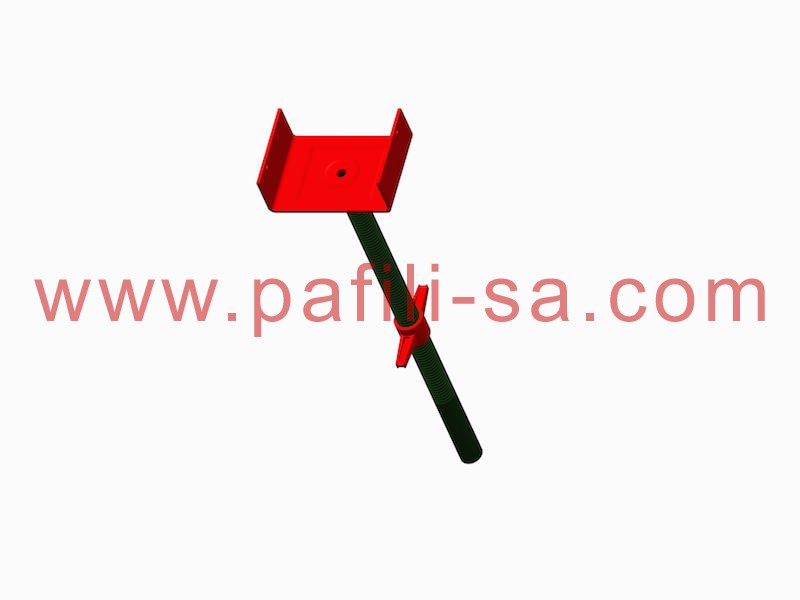

407 Head Jack 21 cm
(Ø40 X 5 mm)

408 Base Jack

(Ø40 X 5 mm, 0.70m long)

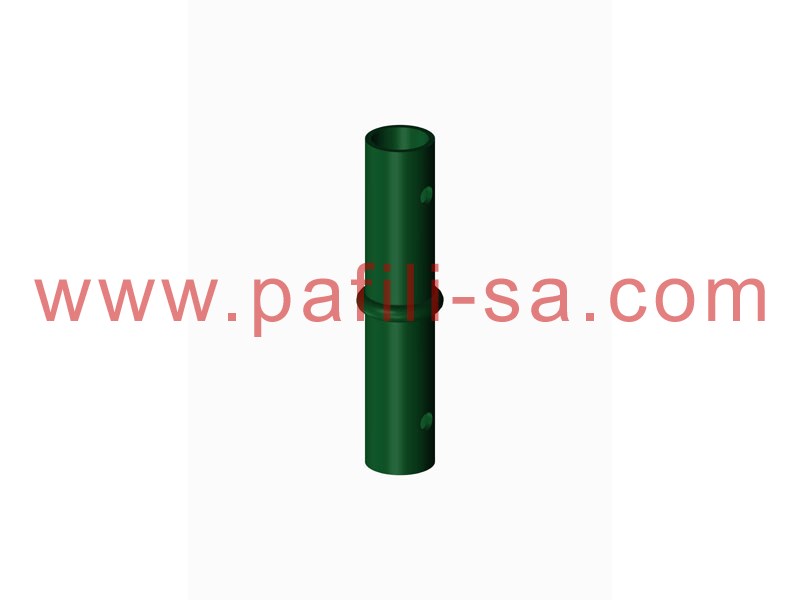

310 Frame Connector

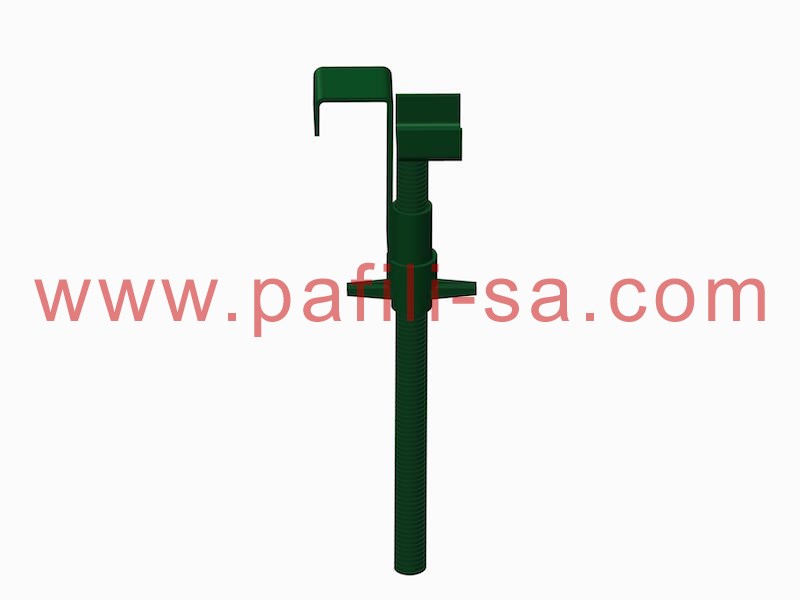

(Ø40 x 3.2mm, 0.20m long)

311 Reception for supporting
MP-110 & G-20 Beams

U Tube

312 for MP-110
313 for G-20

Double U

314 for MP-110
315 for G-20

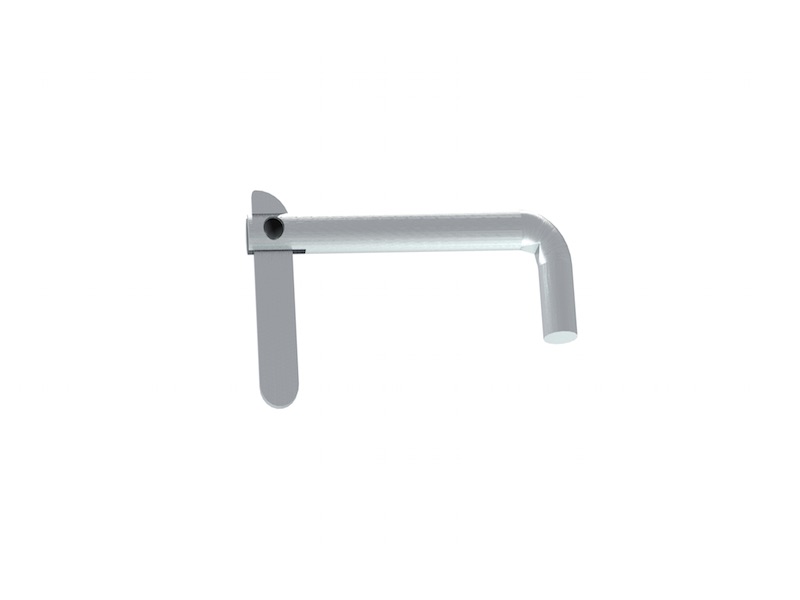

317 Frame Safety pin

318 Bolt L=146

319 Base for inclined surfaces
(adjusted to the head jack)

322 Side System (0.70m long)

323 Claw connecting MP-110
and G-20

324 Claw connecting MP-110

325 Ratchet wrench for MP-110

MP-110

326		1.70 m
327		2.20 m
328		2.70 m

329 Spanner

330 Spanner clamp for connection
of secondary beams G-20

331 Spanner clamp for connection
of primary beams G-20

G-20

332		L=1.80 m
333		L=2.50 m
334		L=3.30 m
335		L=3.90 m

336 Adjustable step

Column Clamps
(Thickness: 80 x 6 cm)

338 for column 0.50 m
339 for column 0.80 m 340 for column 1.20m

341 Clamp

342 Lifting Jack

343 Right angle coupler

344 Swivel coupler

345 Sleeve coupler

346 Tube

(Ø48.8 x 3.2mm)

Galvanized Shuttering System T1 Parts
