T3 Shuttering System

Shuttering System T3 (Class B)

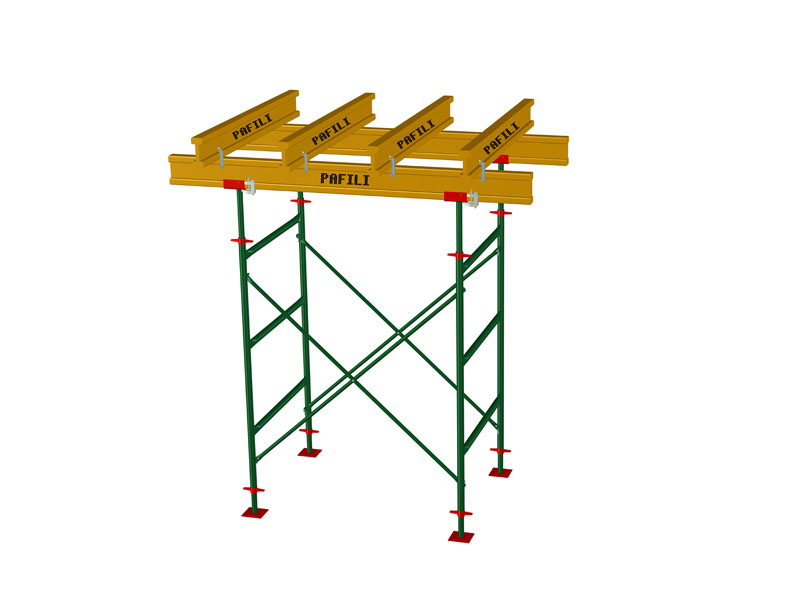

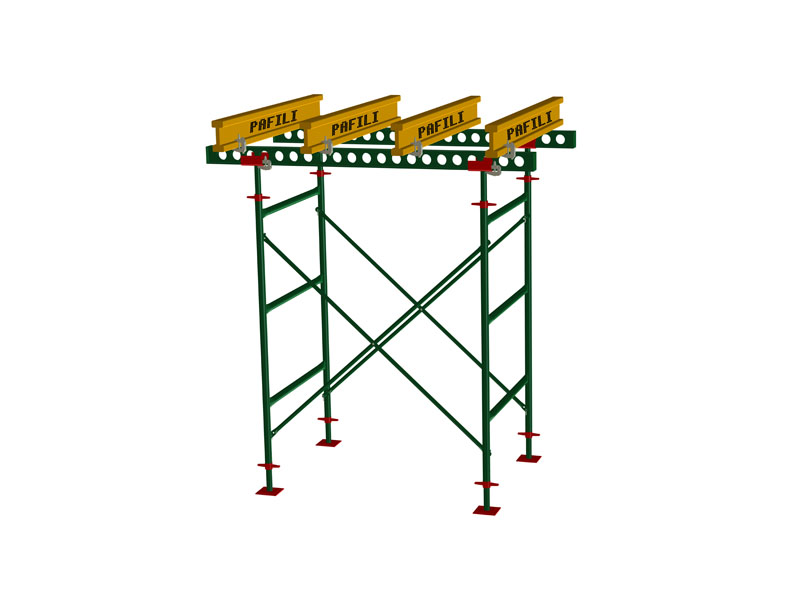

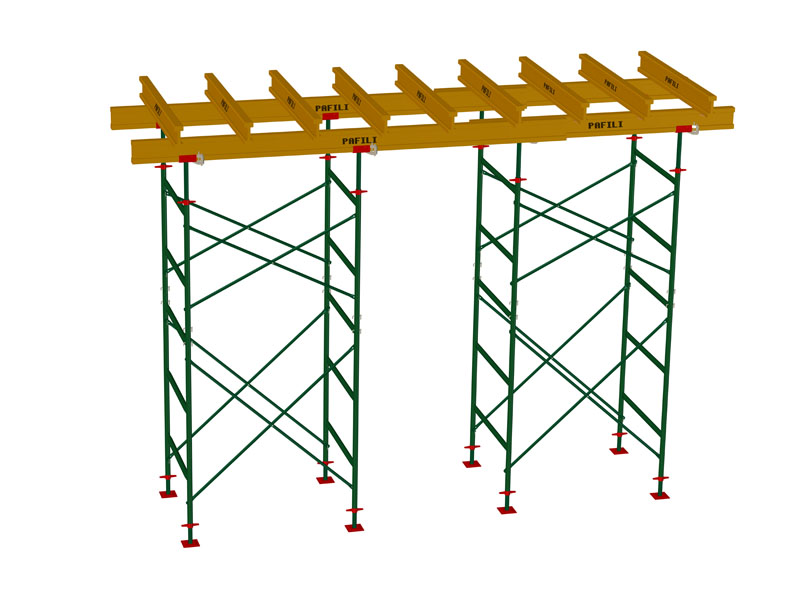

Complete Tower 1.20 x 1.55m consists of:
- Frames 1.20 x 1.80m, Ø 48.8 x 3.2mm
- Frames 1.20 x 1.20m, Ø 48.8 x 3.2mm
- Base and head jacks Ø 40 x 5mm, 0.70m long
Minimum height of 1.80 x 1.20 tower: 1.95m
Maximum height of 1.80 x 1.20 tower: 2.85m
(Primary and secondary beams on head jacks are not included)
Quality of steel: S235 & S355

The Couplers are made in accordance with EN 74-1.

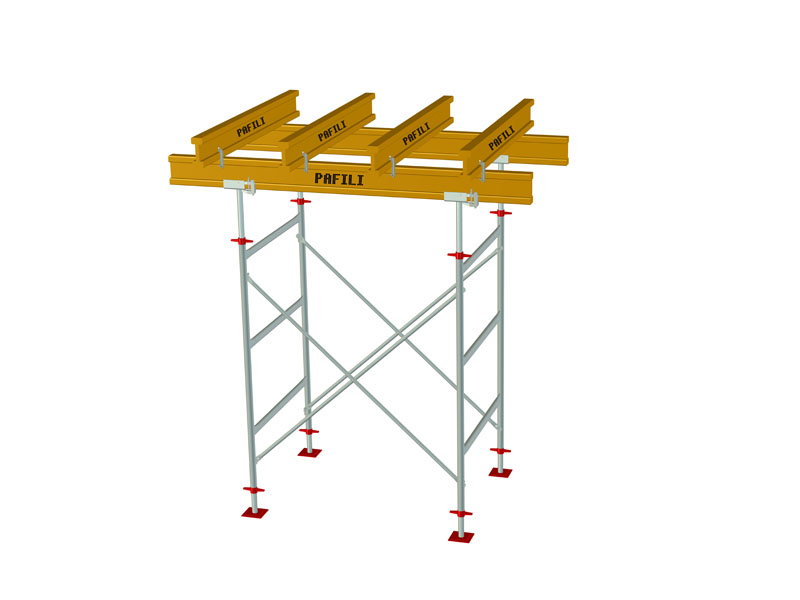

All products can be also supplied in galvanized steel.

Products Catalog

Shuttering System T3

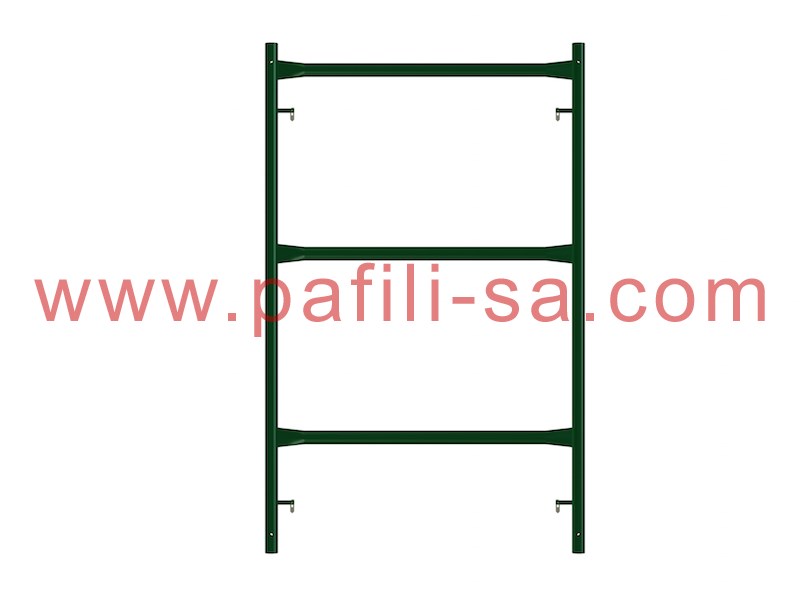

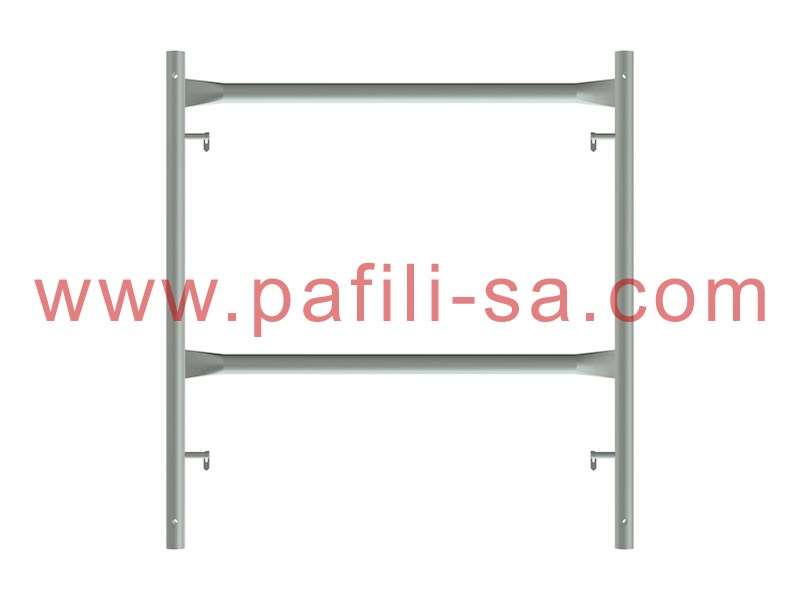

301 Frame 1.80 X 1.20 m

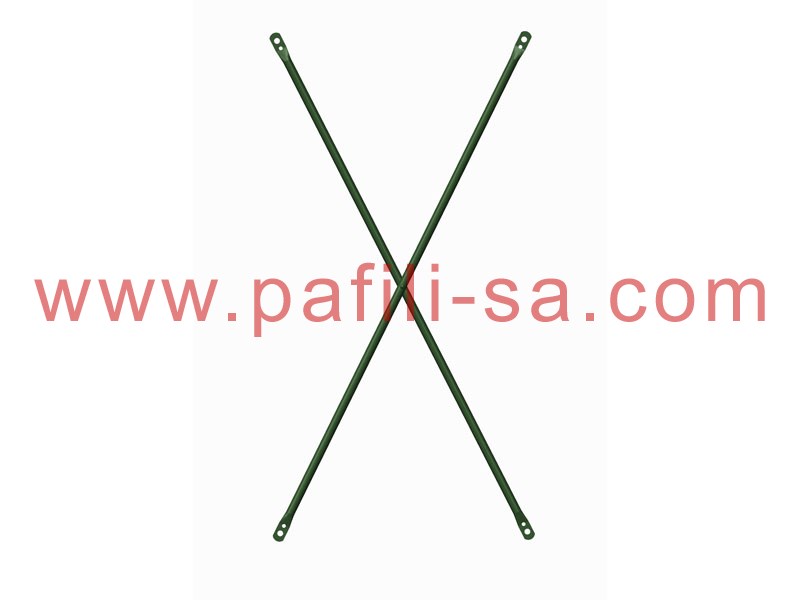

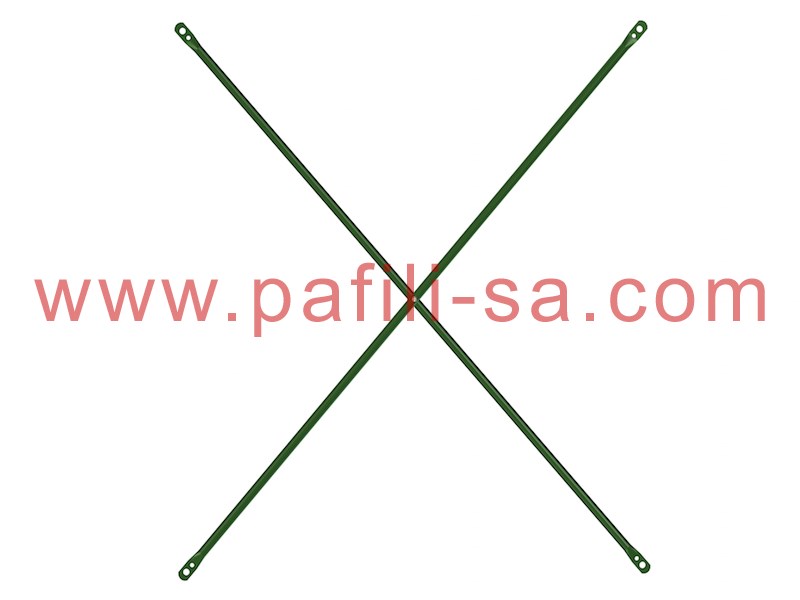

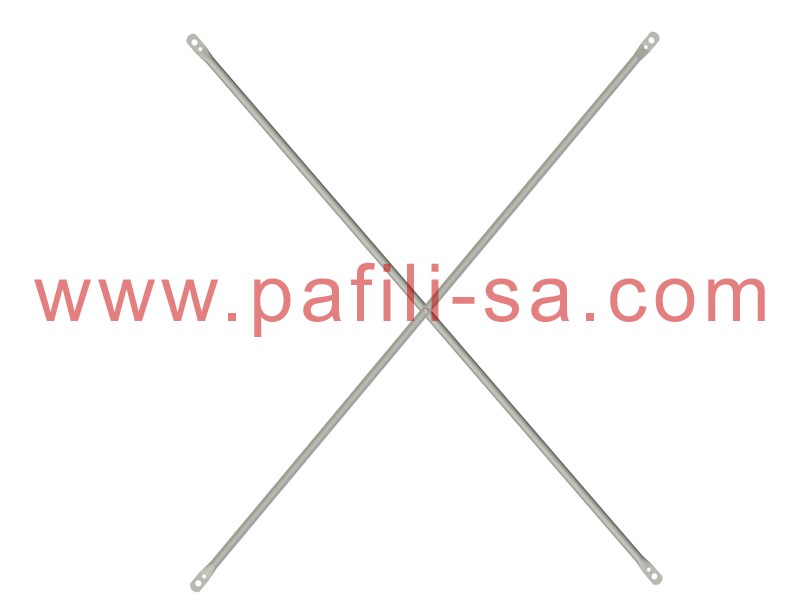

302 Diagonal Cross Brace 2.10 m

(Ø27 X 2 mm)

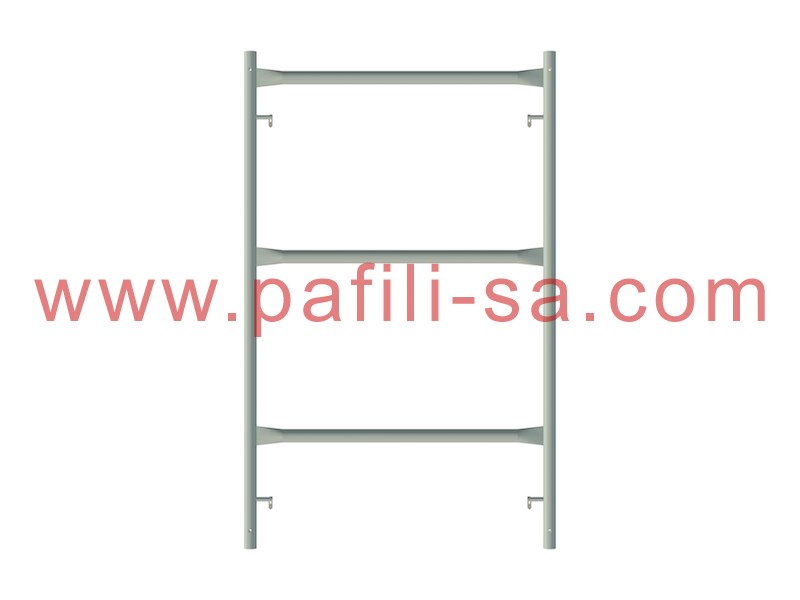

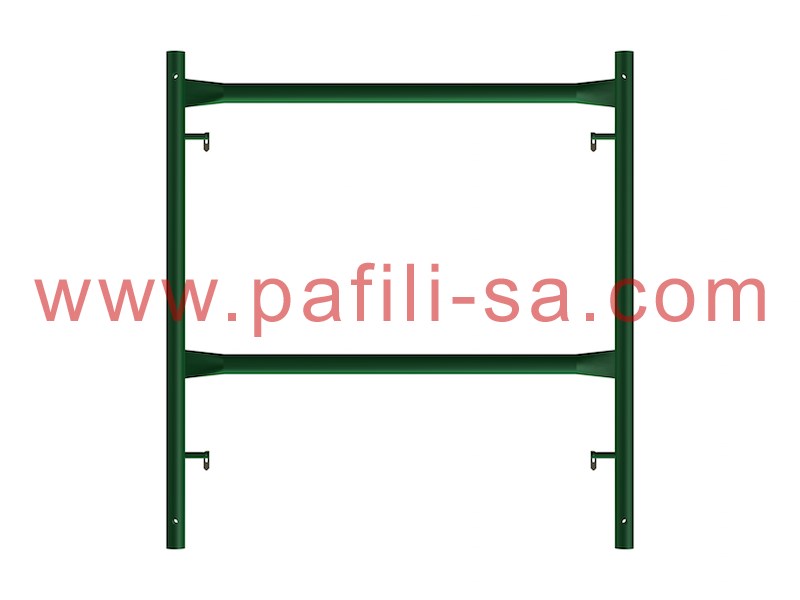

303 Frame 1.20 X 1.20 m

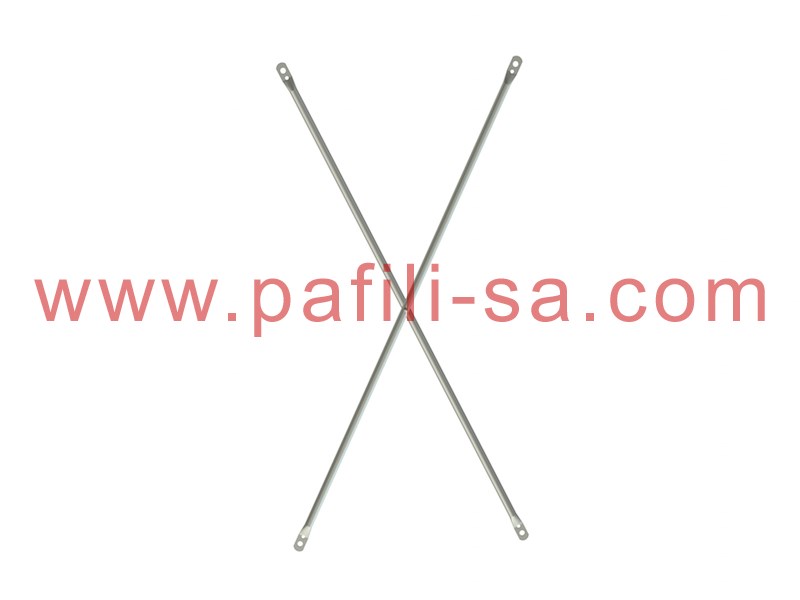

304 Diagonal Cross Brace 1.75m

(Ø27 X 2 mm)

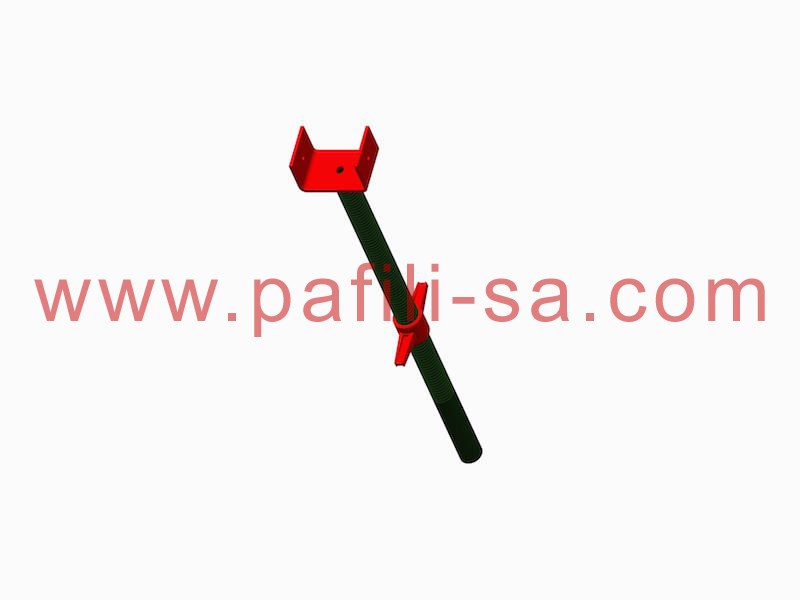

305 Head Jack 11 cm

(Ø40 X 5 mm)

306 Head Jack 17 cm

(Ø40 X 5 mm)

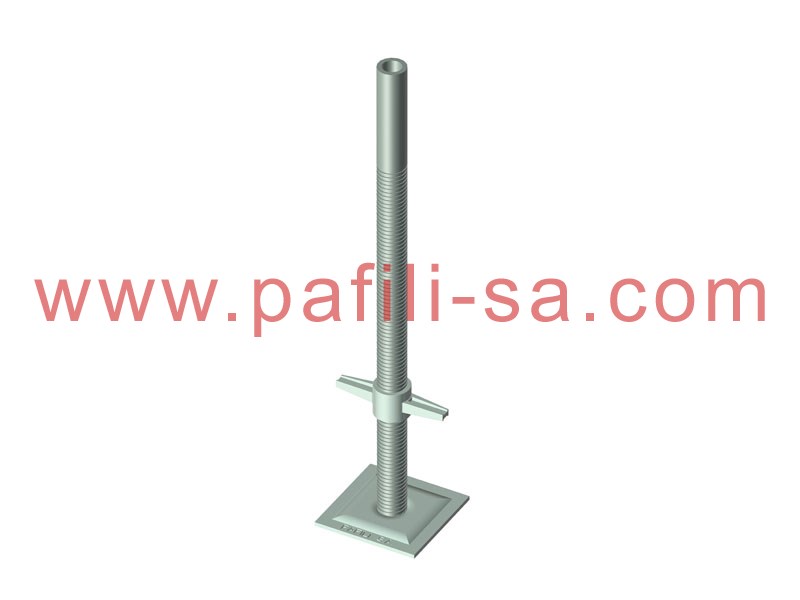

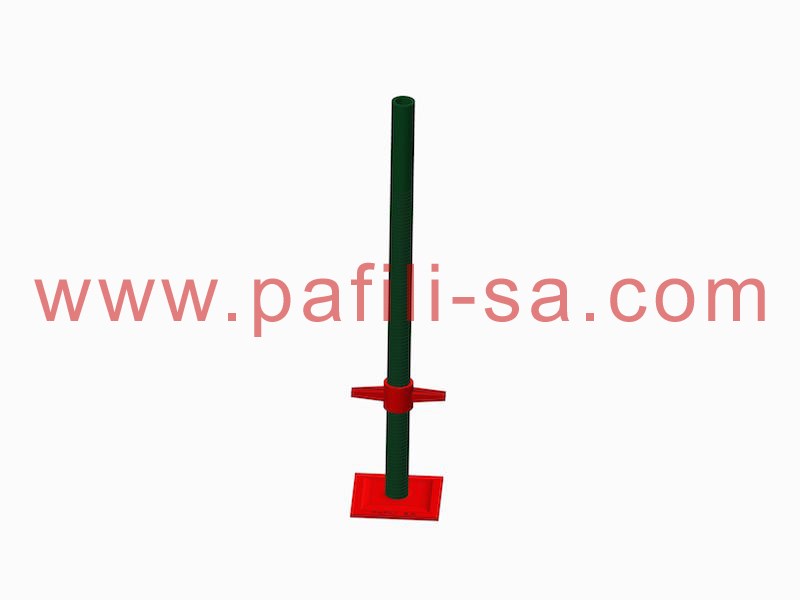

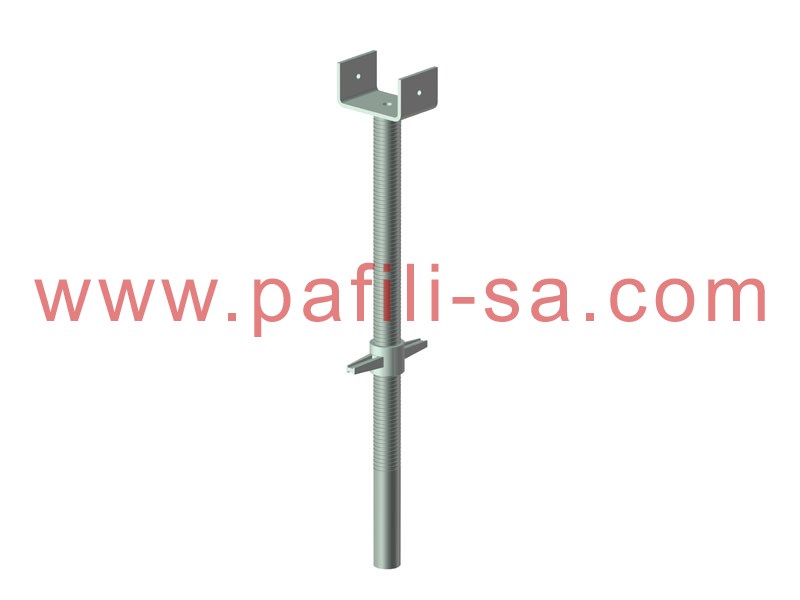

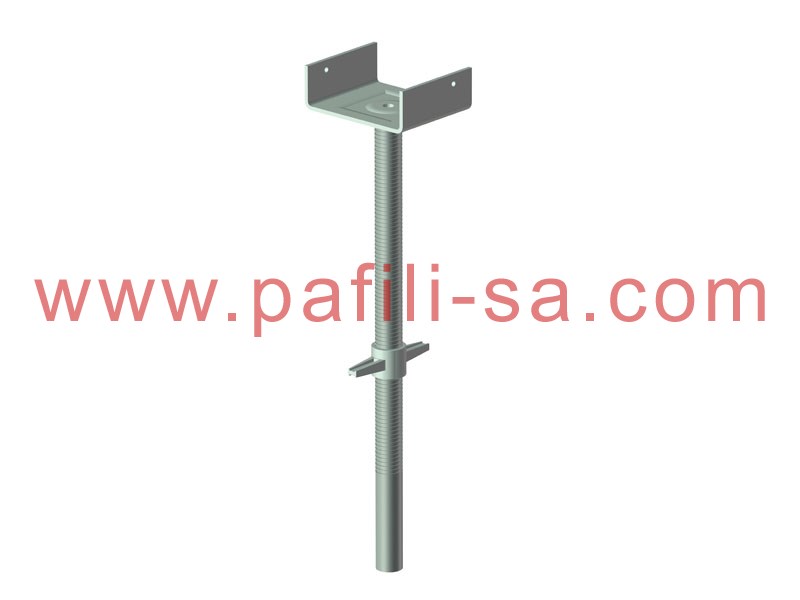

308 Base Jack

(Ø40 X 5 mm, 0.70 m long)

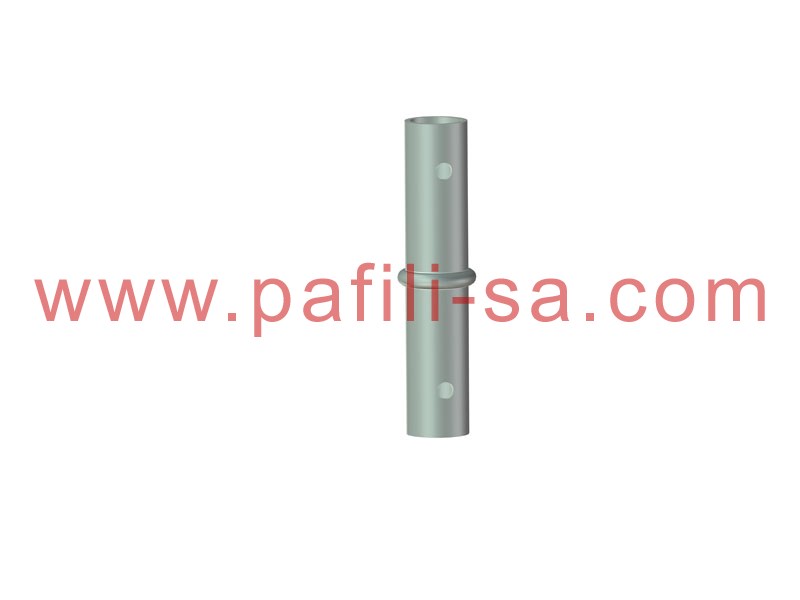

310 Frame Connector

(Ø40 X 3.2 mm, 0.20m long)

U Tube

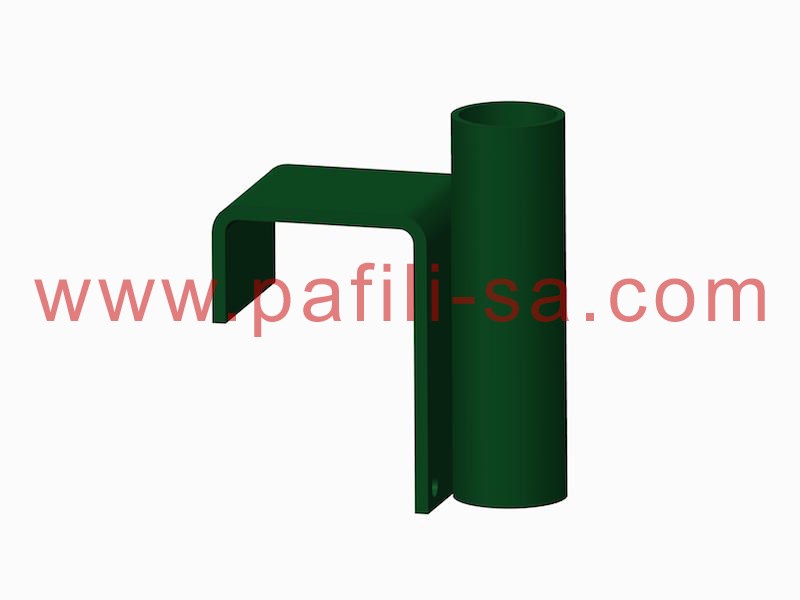

312 for MP-110
313 for G-20

Double U

314 for MP-110

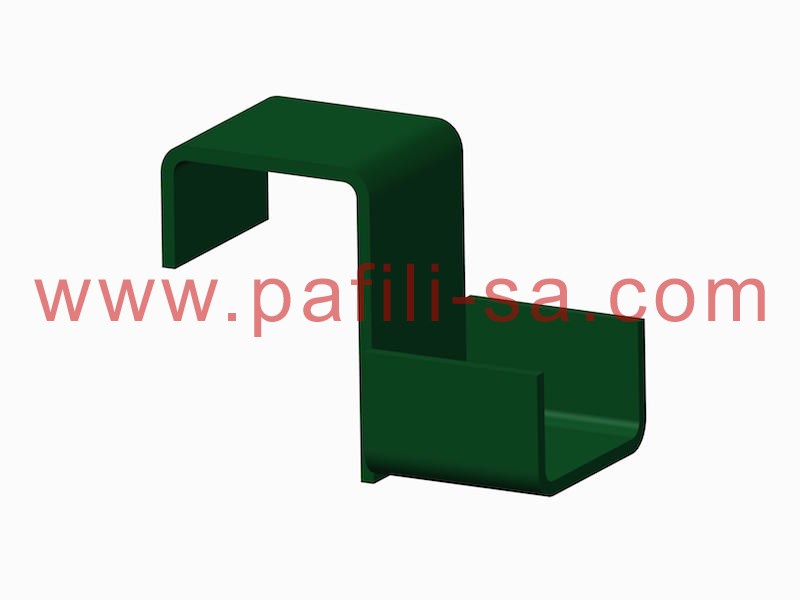

315 for G-20

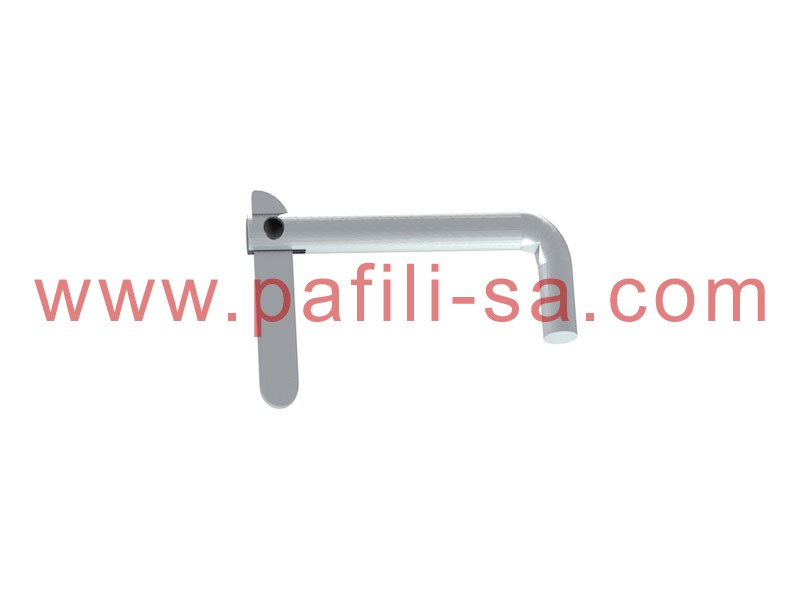

317 Frame Safety pin

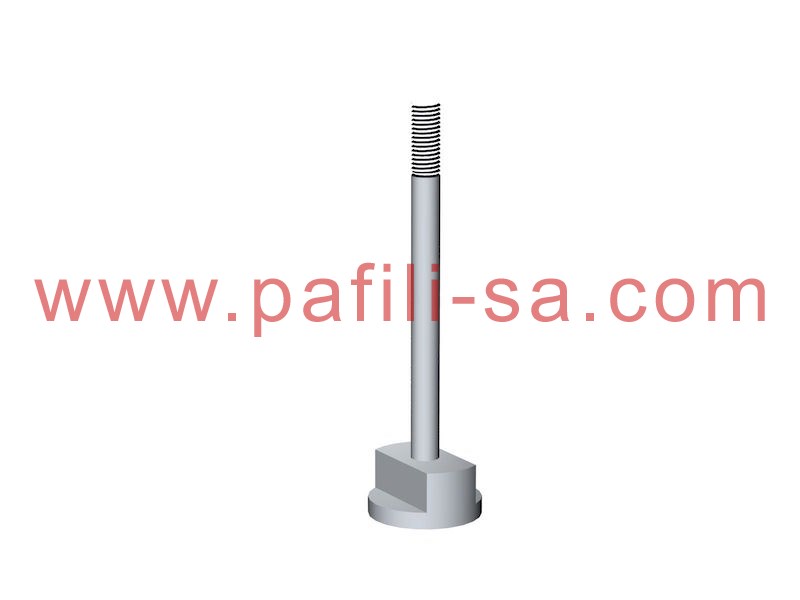

318 Bolt L=146

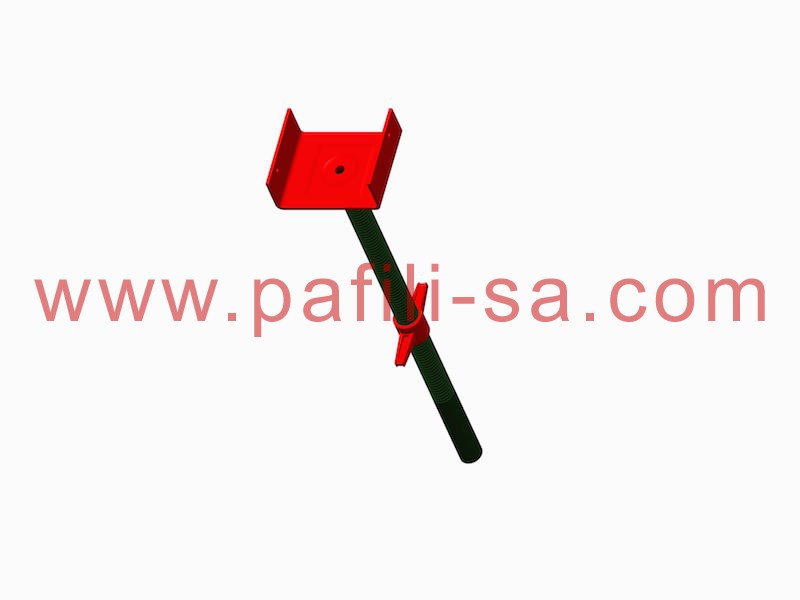

319 Base for inclined surfaces
(adjusted to the head jack)

322 Side System (0.70m long)

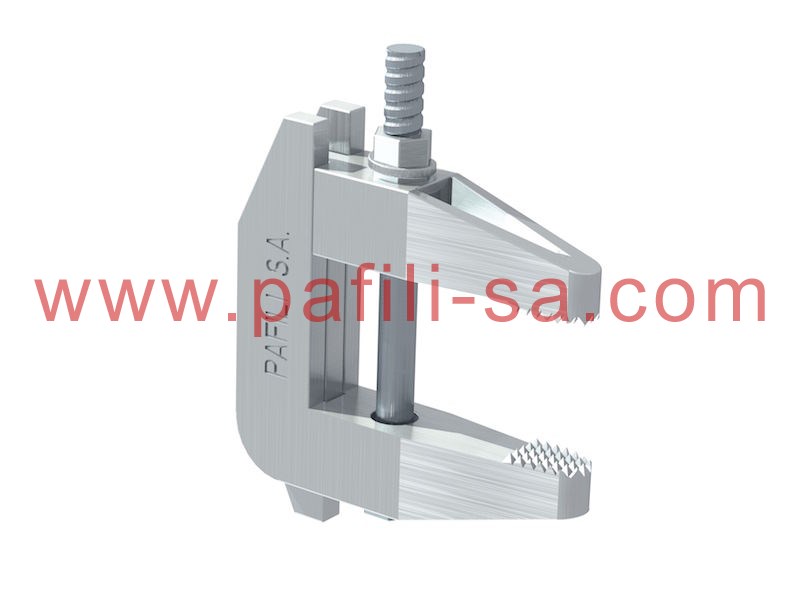

323 Claw connecting MP-110
and G-20

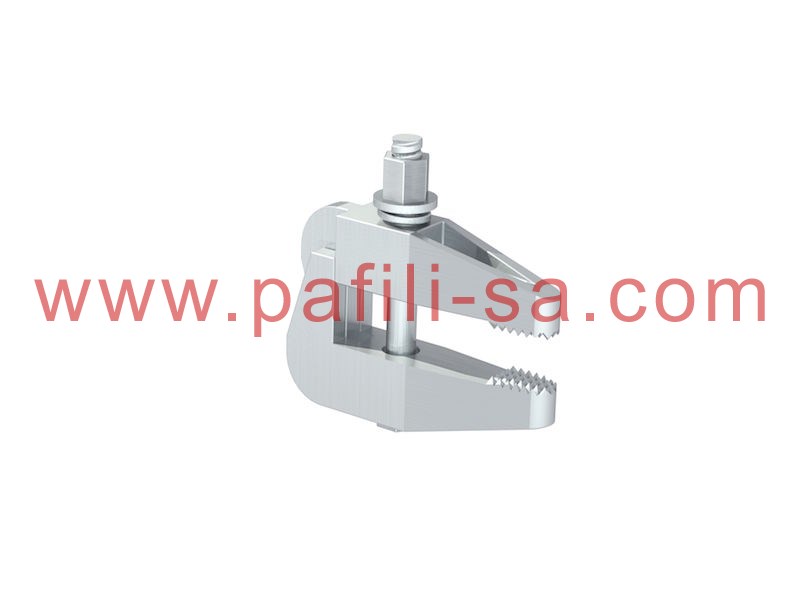

324 Claw connecting MP-110

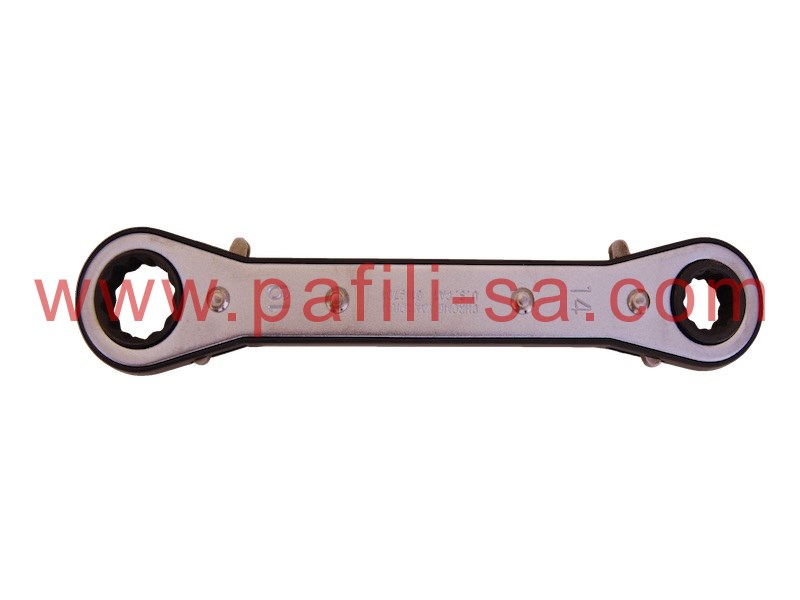

325 Ratchet wrench for MP-110

MP-110

326		1.70 m
327		2.20 m
328		2.70 m

329 Spanner

330 Spanner clamp for connection
of secondary beams G-20

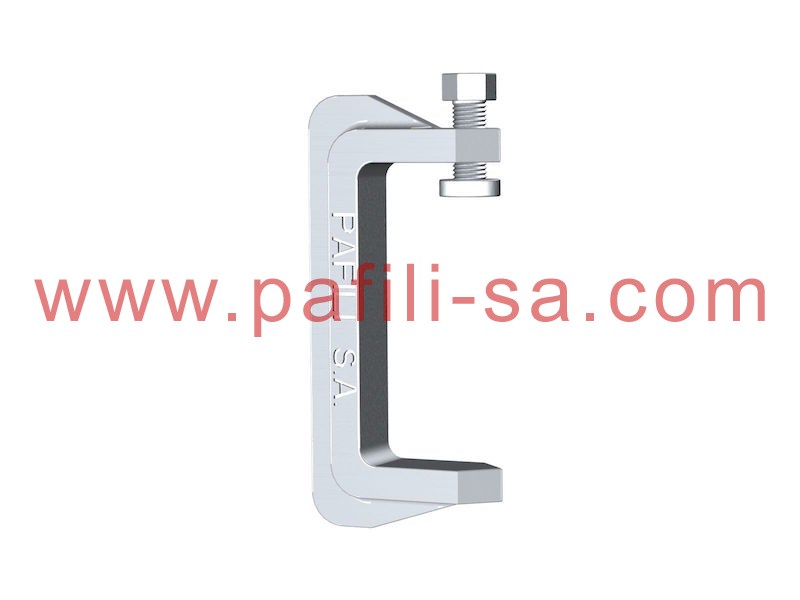

331 Spanner clamp for connection
of primary beams G-20

G-20

332		L=1.80 m
333		L=2.50 m
334		L=3.30 m
335		L=3.90 m

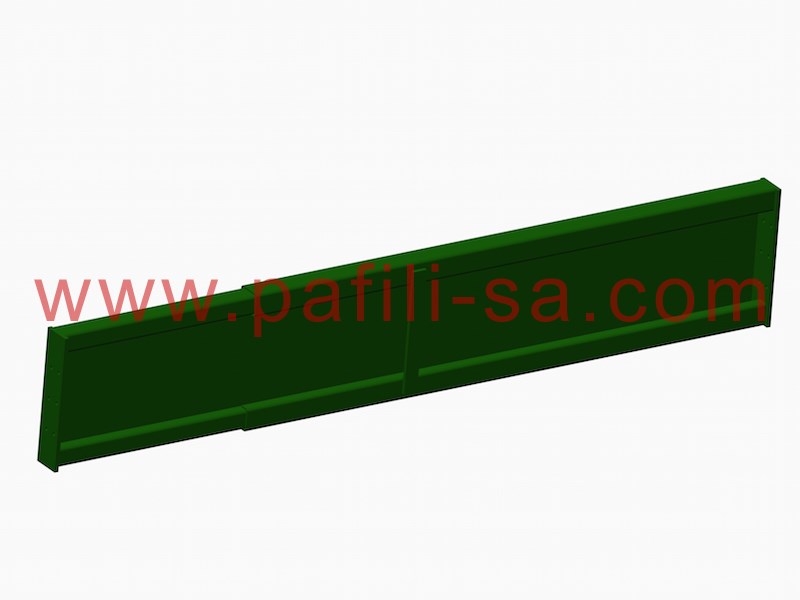

336 Adjustable step

Column Clamps
(Thickness: 80 x 6 cm)

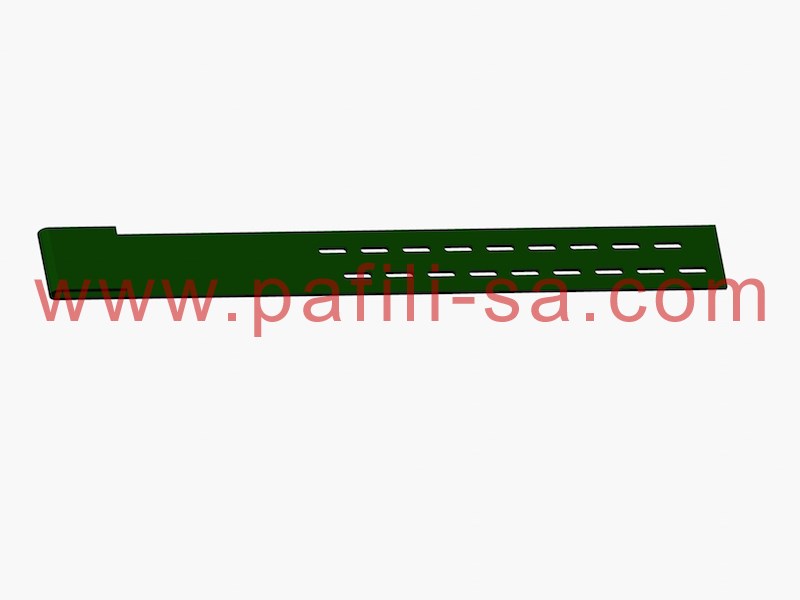

338 for column 0.50 m
339 for column 0.80 m 340 for column 1.20m

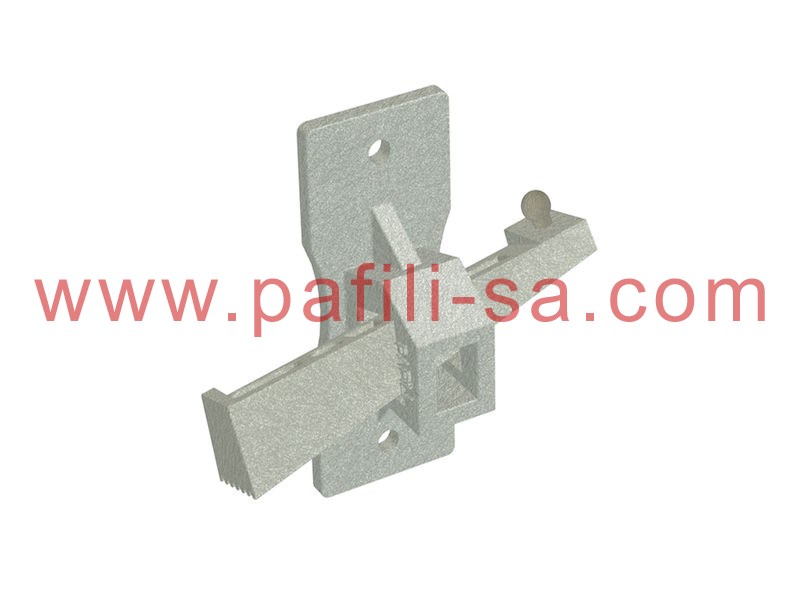

341 Clamp

342 Lifting Jack

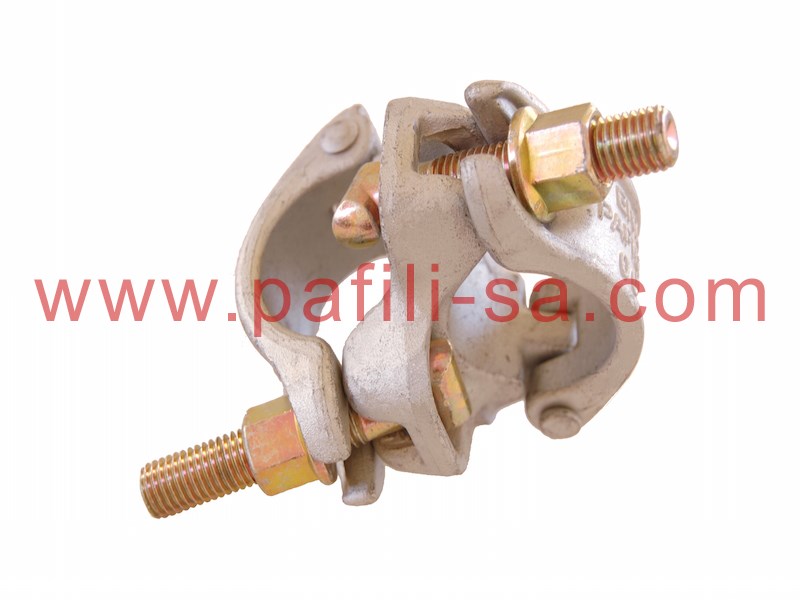

343 Right angle coupler

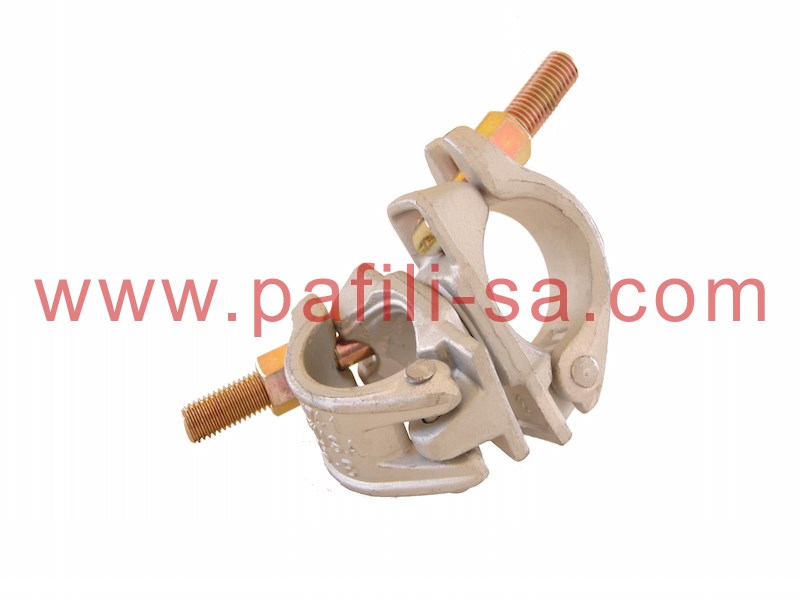

344 Swivel coupler

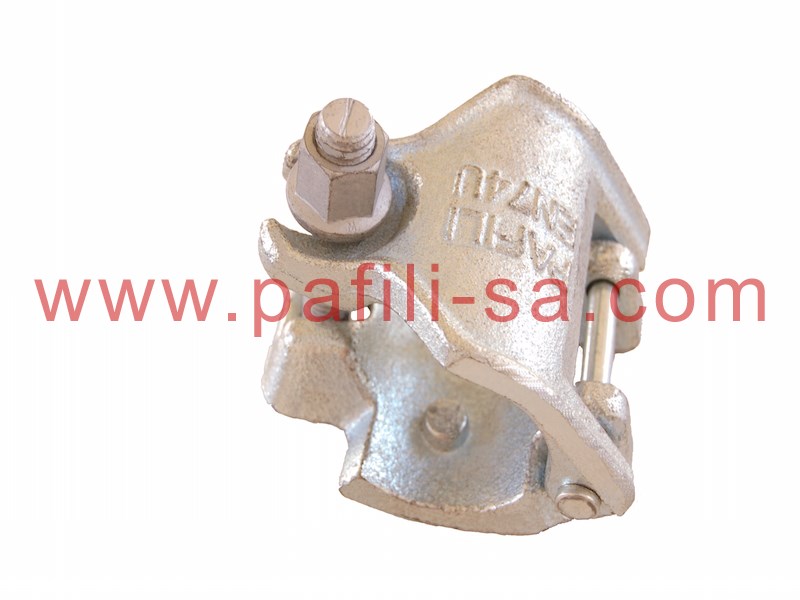

345 Sleeve coupler

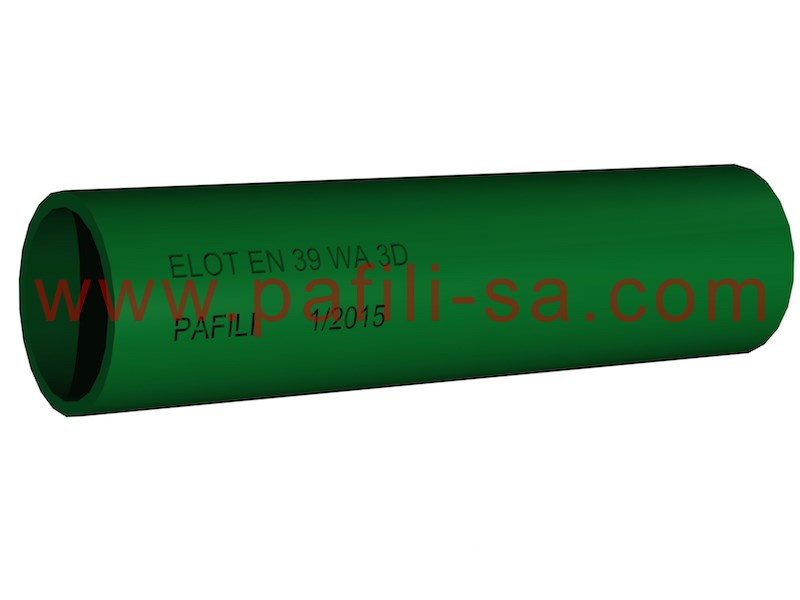

346 Tube

(Ø48.8 x 3.2mm)

Galvanized Shuttering System T3 Parts
