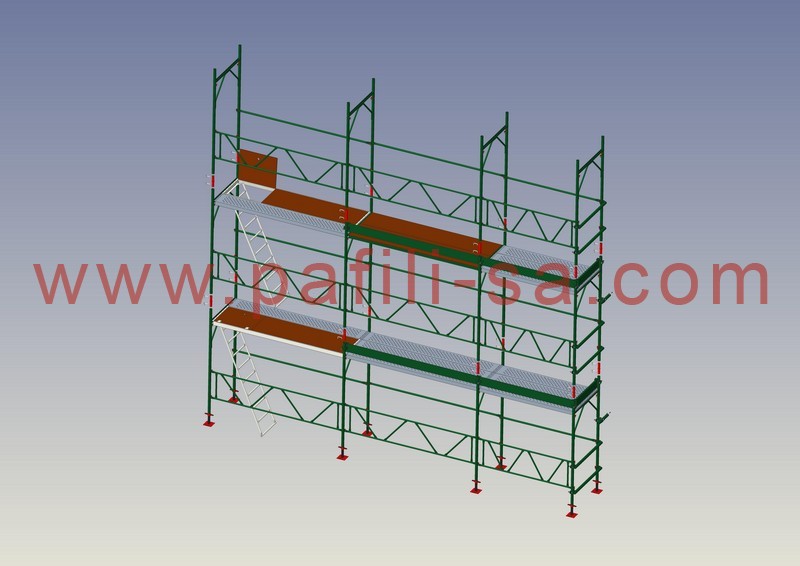

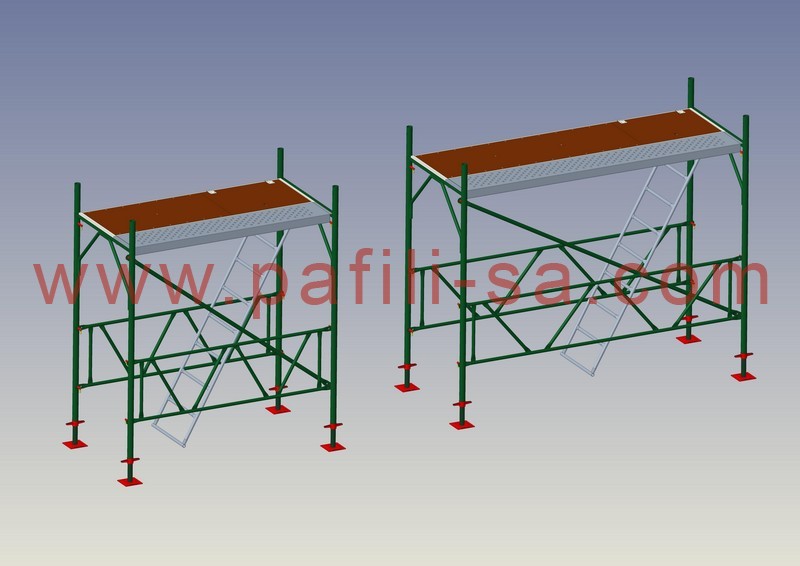

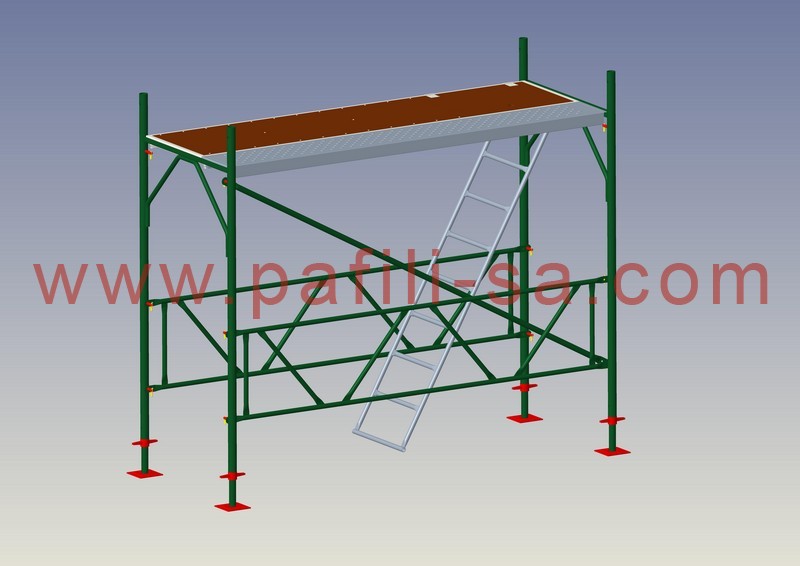

Metallic Scaffolding T2

Metallic Scaffolding T2 (Class 5)

Prefabricated metallic scaffolding according to the following European Norms:

EN 39 / 2001
EN 131- 2/93
EN 12810.01 / 2003
EN 12810.02 / 2003
EN 12811.01 / 2003
EN 12811.02 / 2004
EN 74 / 2003

Main Components:

Frames 1.00 x 2.00, Ø48.8 x 3.2mm

- Weight per frame: 19.5Kg
- Quality of steel: S235

Base jacks Ø40 x 5mm, 0,70 long
Platforms with hatch and ladder 0,60 x 2,50m
Galvanized Platforms 0,30 x 2,50m
Safety railings 0,50 x 2,50m, Ø27 x 2mm

Couplers:

The Couplers are made in accordance with EN 74-1.

Products Catalog

Metallic Scaffolding T2

201 Frame 2.00 X 1.00 m

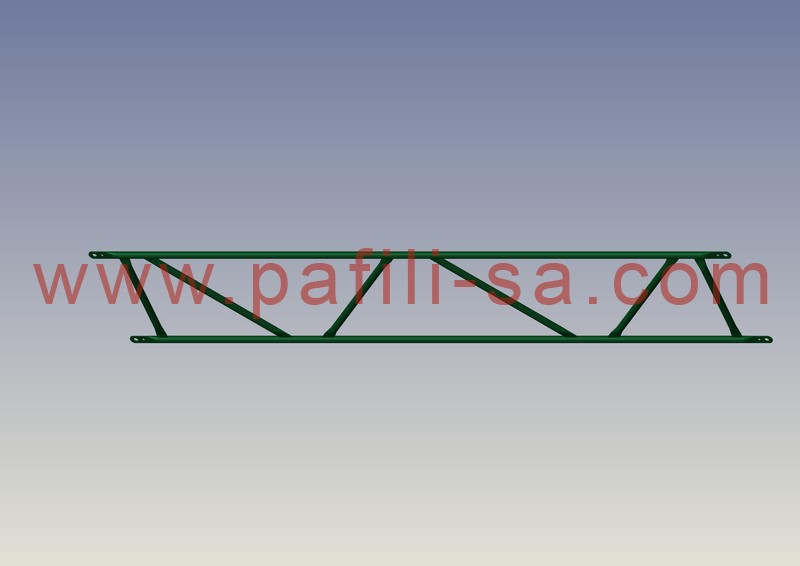

205 Safety railing 0.50 X 2.50 m

(Ø 27 X 2 mm)

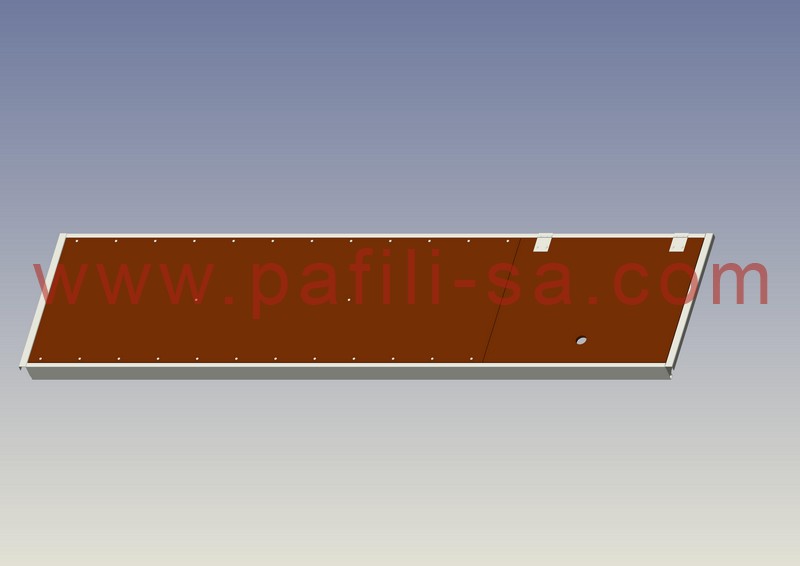

207 Platform with hatch and ladder

0.60 X 2.50 m

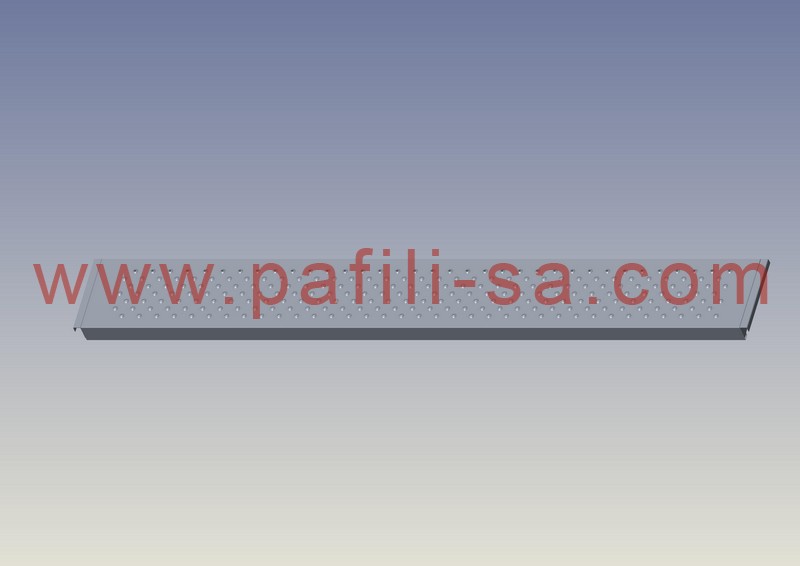

208 Galvanized Platform

0.30 X 2.50 m

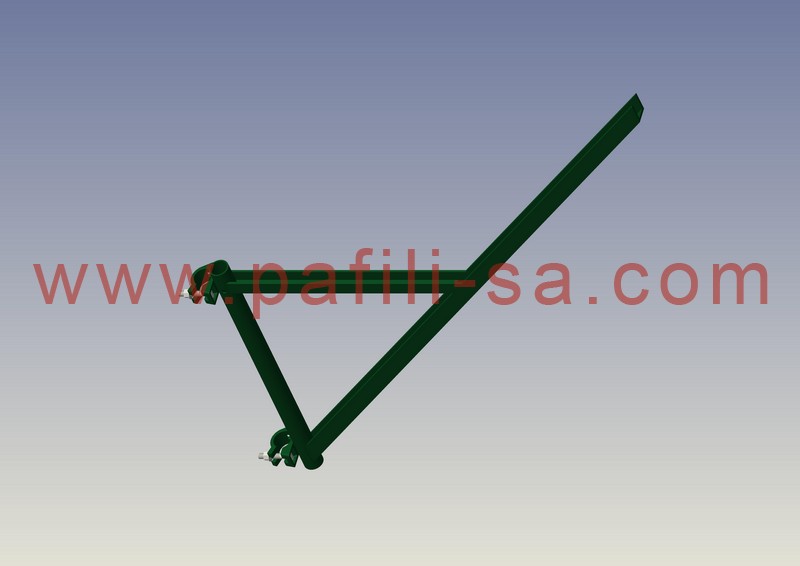

214 Side protection board

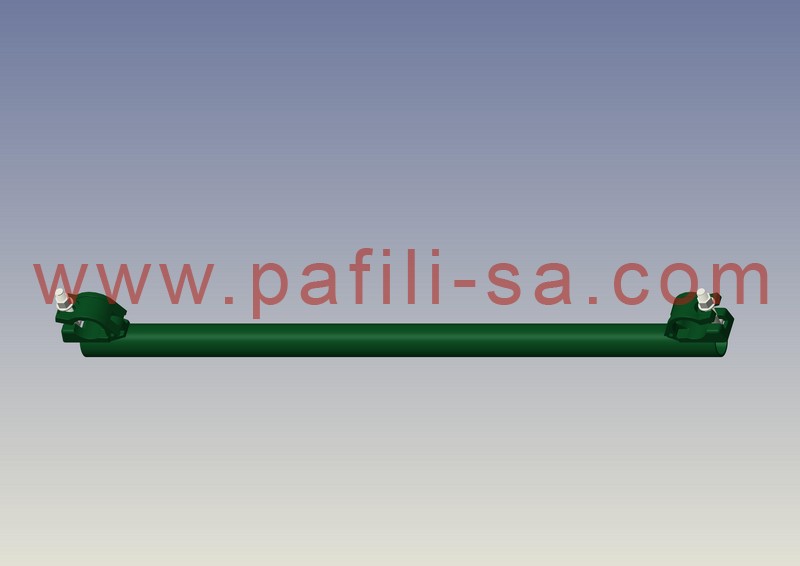

215 Rail with couplers

(Ø48.8 X 3.2 mm, 1.00m long)

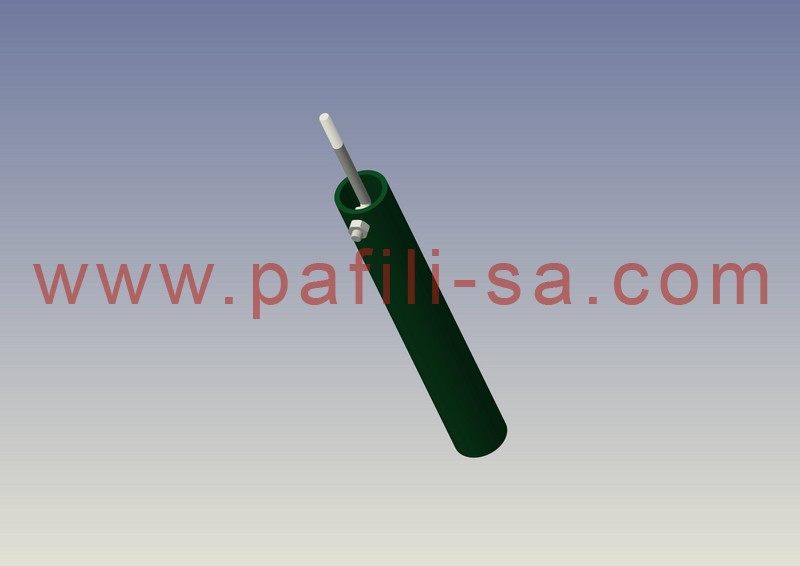

218 Wall back stay

(Ø48.8 X 3.2 mm)

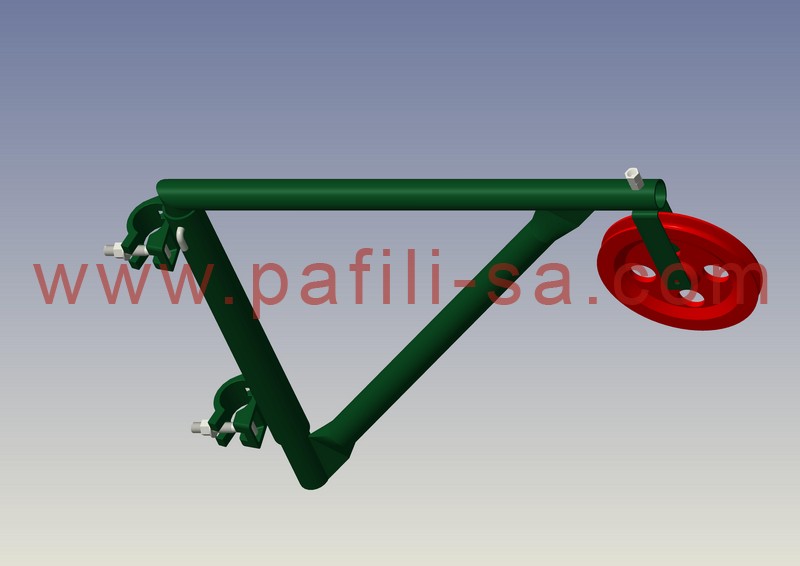

219 Lifting bracket

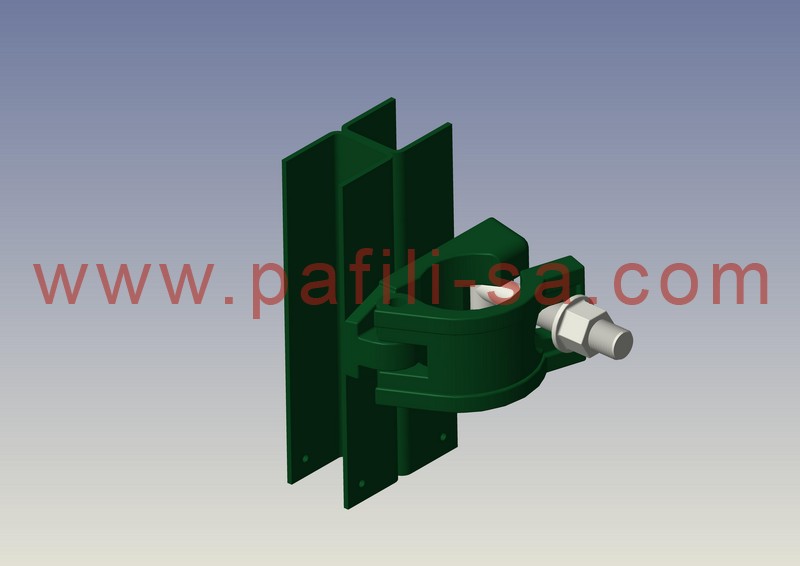

220 Double reception for planks

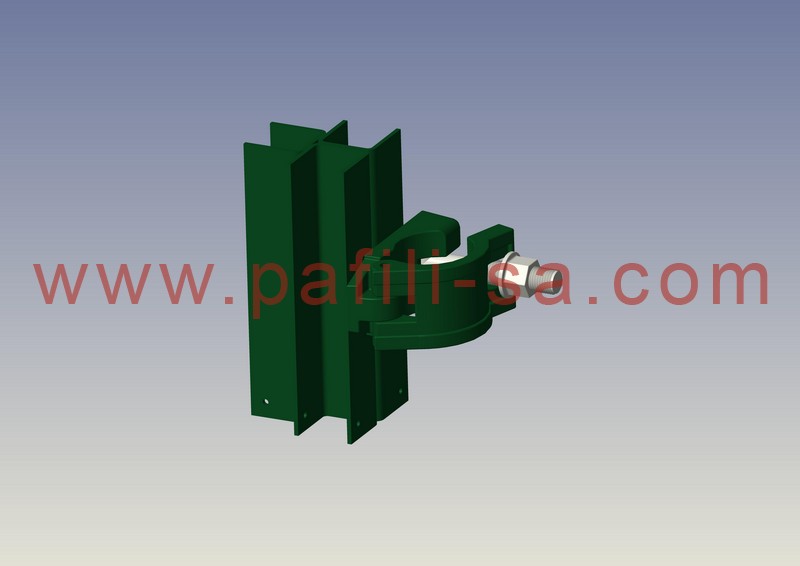

221 Triple reception for planks

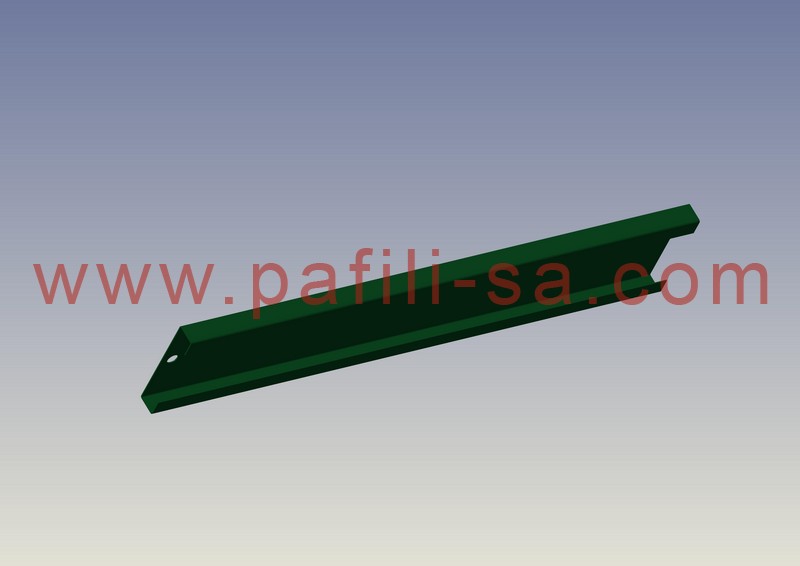

224 Protection Board
(0.77m long)

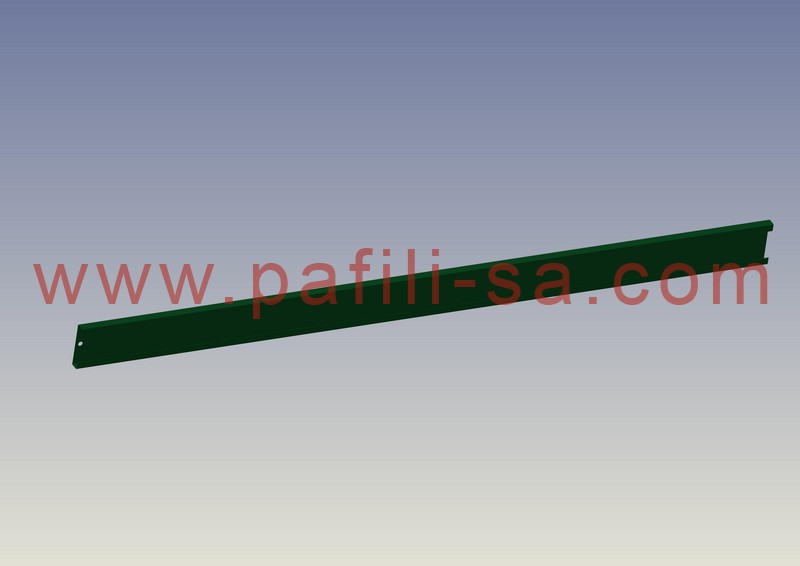

225 Protection Board
(2.48m long)

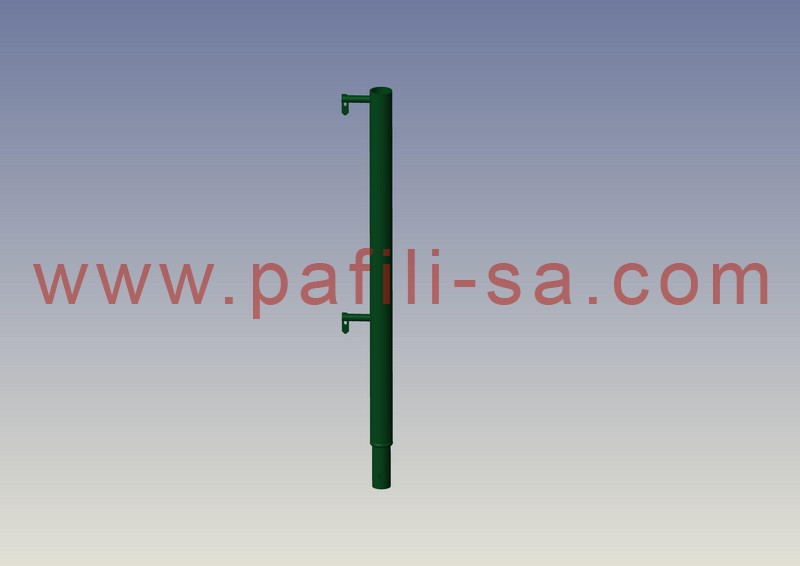

226 Gunwale with pins
and frame connector

(Ø48.8 X 3.2 mm, 0.80 m long)

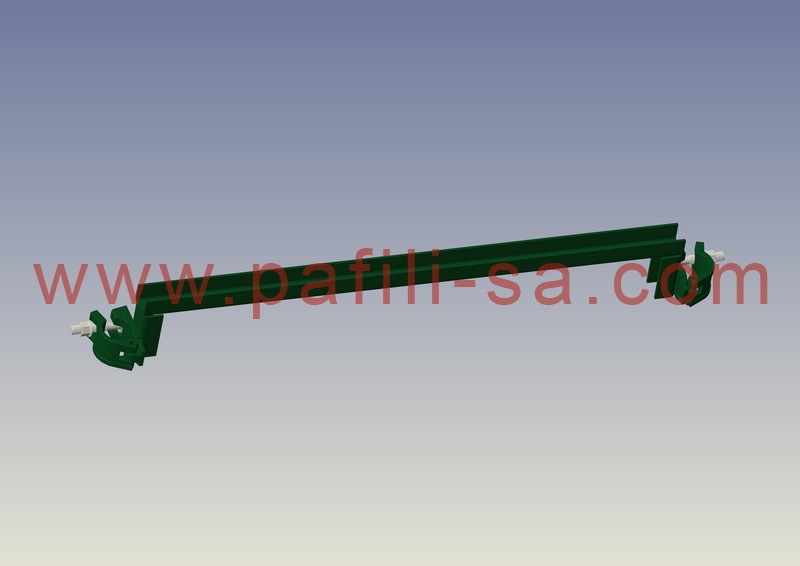

227 Movable reception for platform

(0.90m long)

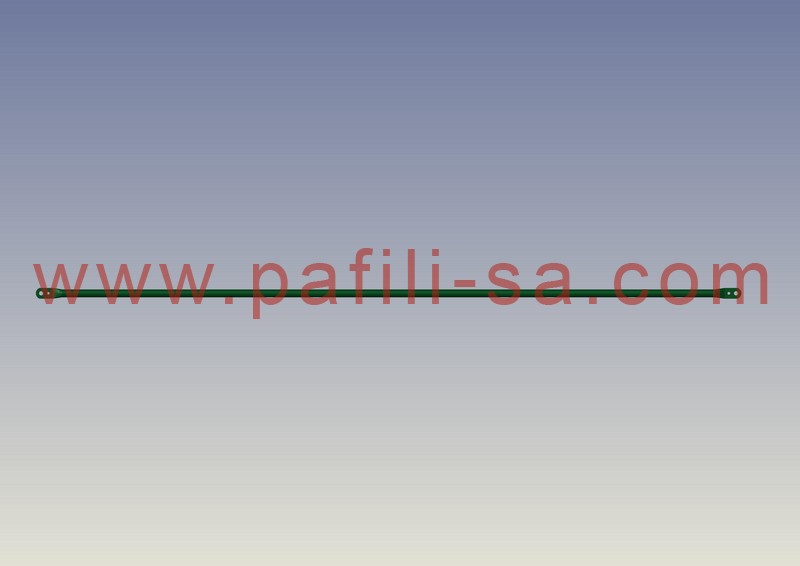

229 Rail (Ø27, 2.50m long)

308 Base Jack

(Ø 40 x 5mm, 0.70m long)

310 Frame Connector

(Ø40 X 3.2 mm, 0.20m long)

316 Wheel for moving tower

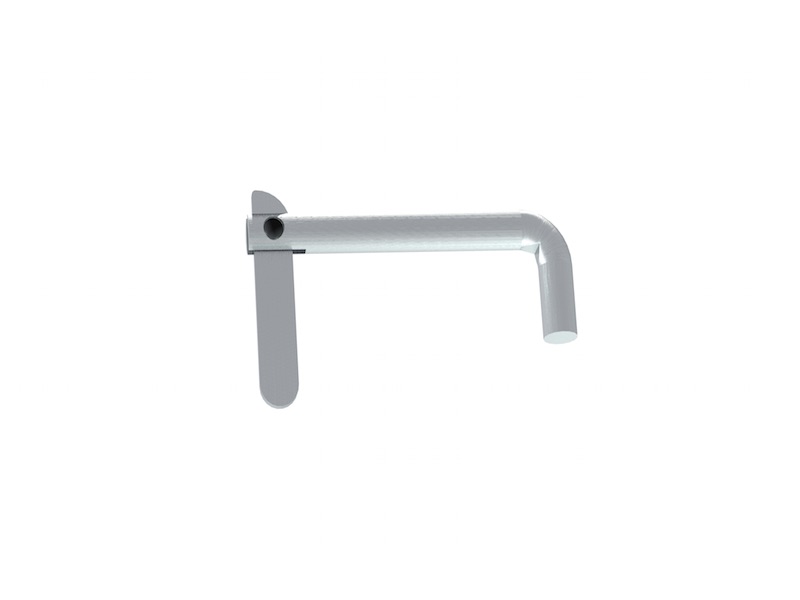

317 Frame Safety Pin

322 Side System (0.70m long)

343 Right angle coupler

344 Swivel coupler

345 Sleeve coupler

346 Tube

(Ø48.8 X 3.2mm)
