Metallic Formwork

PAFILI Metallic Formwork: Simple and versatile
A flexible heavy-duty construction with high-load capacity

System features:

Multiple sizes by one type of metal form which can be used extensively. No need to use and stock different types of panels for each construction stage.
No wood / plywood submaterials that wear out and need replacement.
Flexible to use in restricted spaces.
Can be used in all the phases of the construction work: foundations, walls, columns, elevators, slabs.

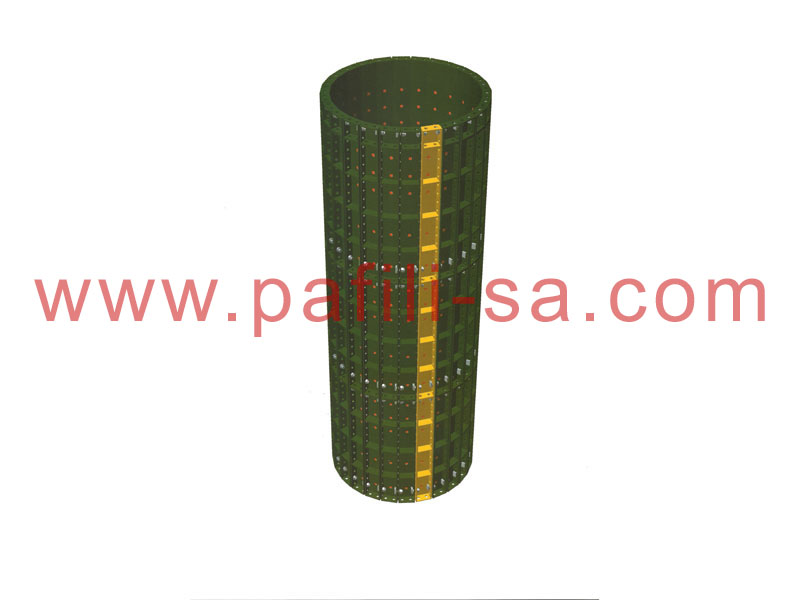

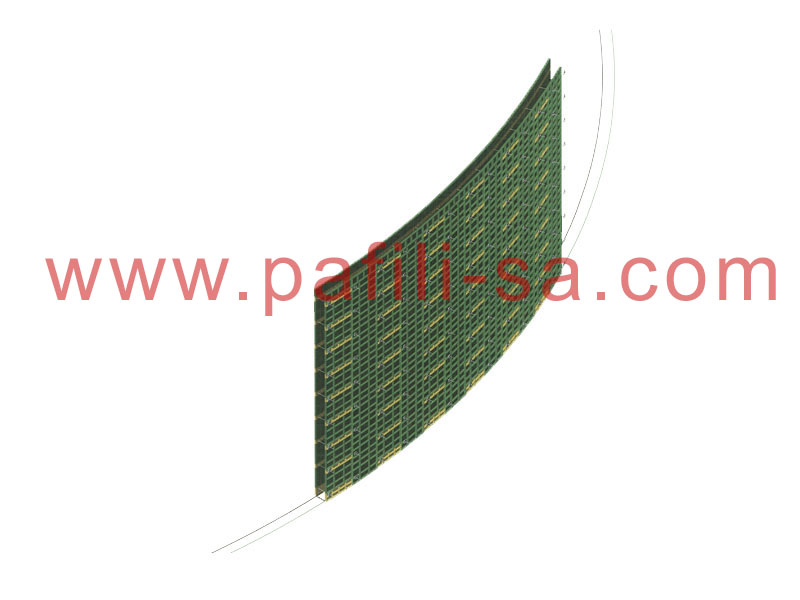

Can be used in circular structures such as water treatment tanks, pools, round columns.
The formwork dimensions can be increased or reduced by 5cm. Therefore any desirable dimensions can be achieved.
Produce a smooth concrete finish.

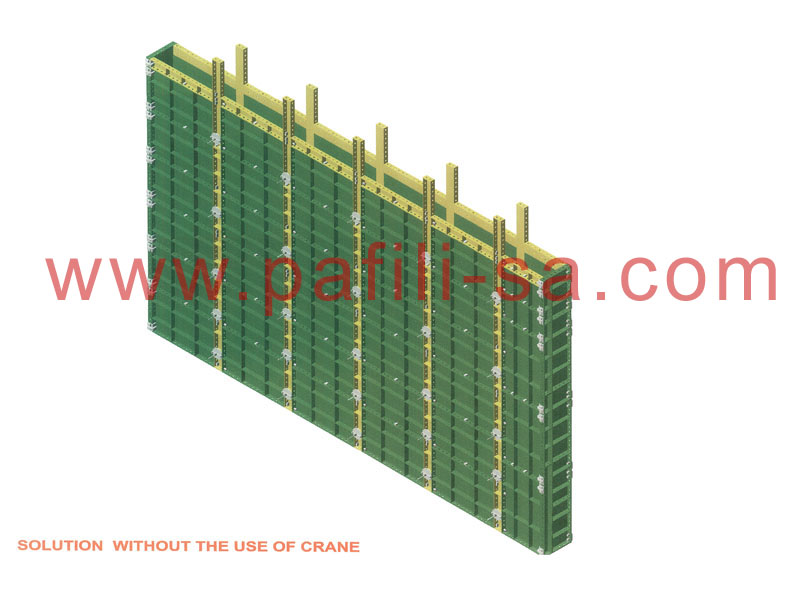

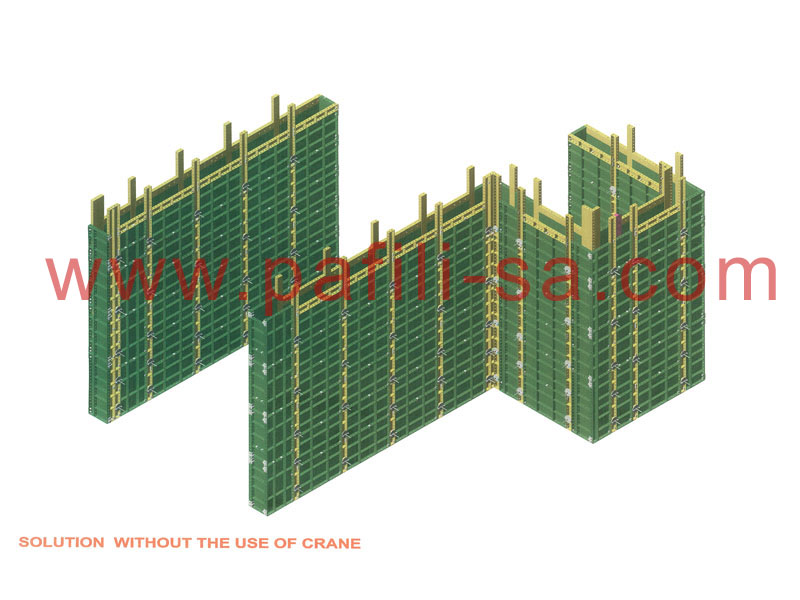

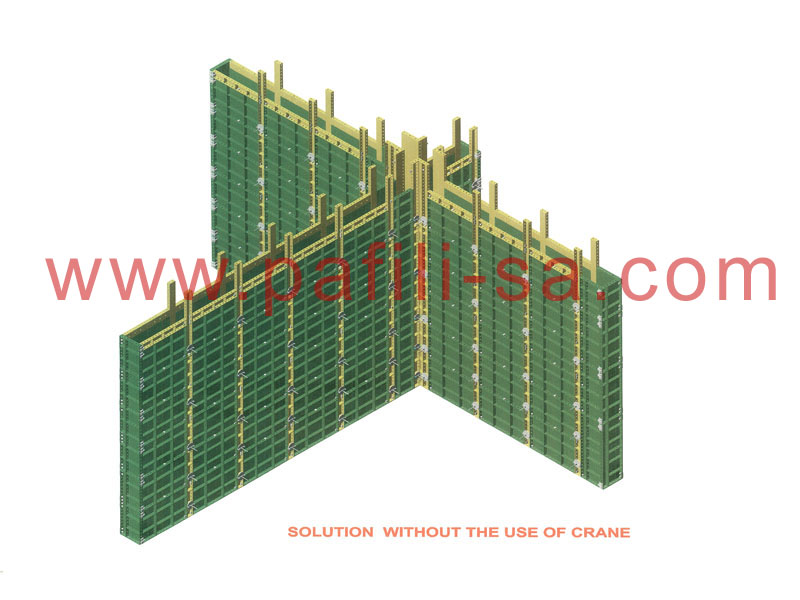

Can be erected or dismantled not only by using a crane, but manually as well.
Produced by Steel QSTE 460 TM SEW 092. ISO 9002 Certified raw material.

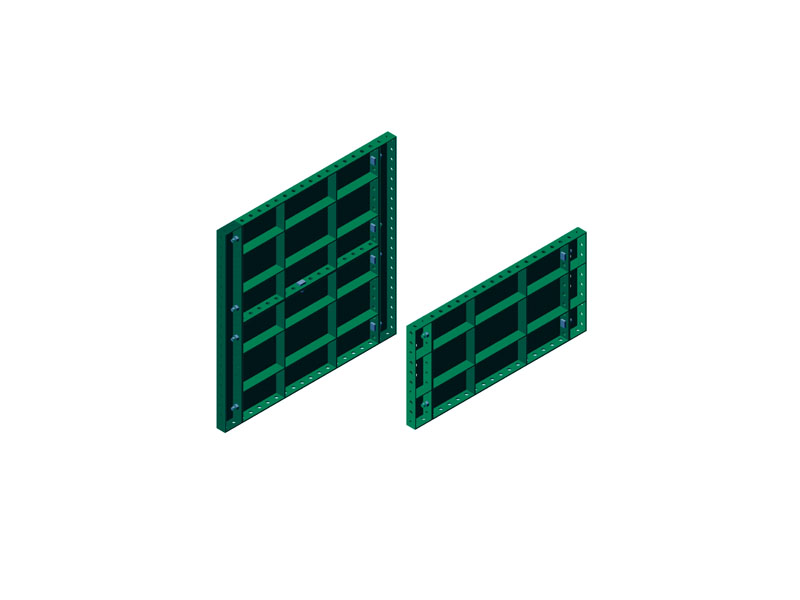

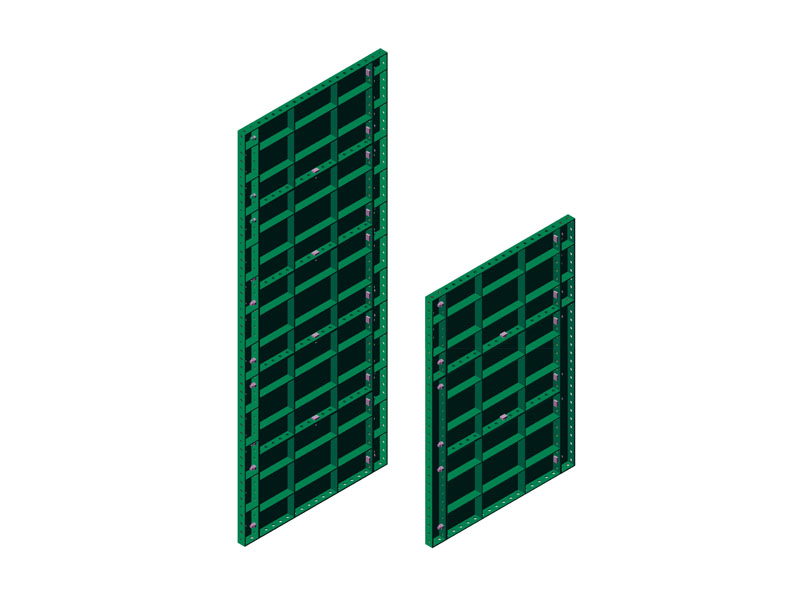

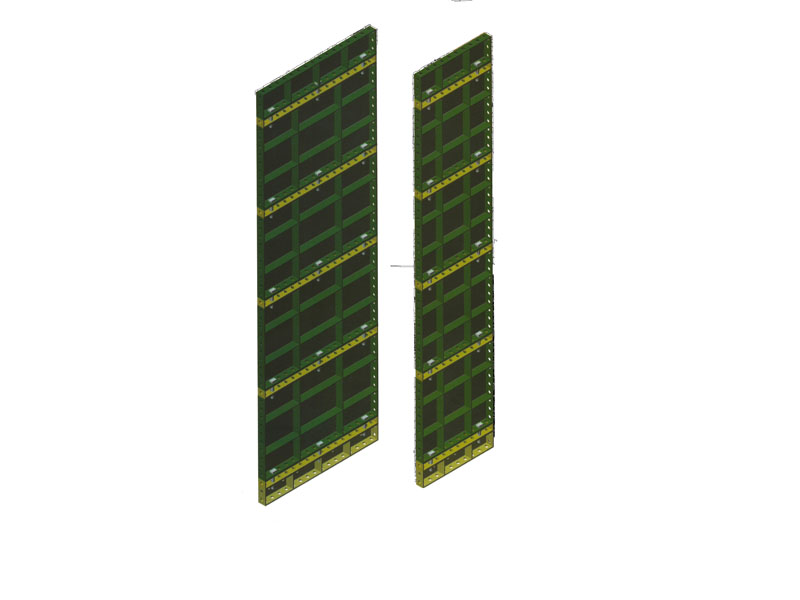

Panels	Dimensions *	Applications

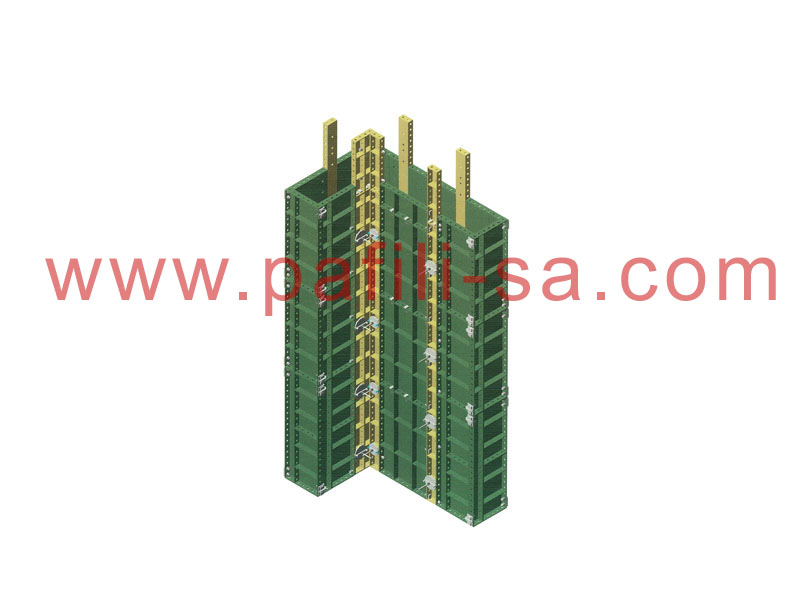

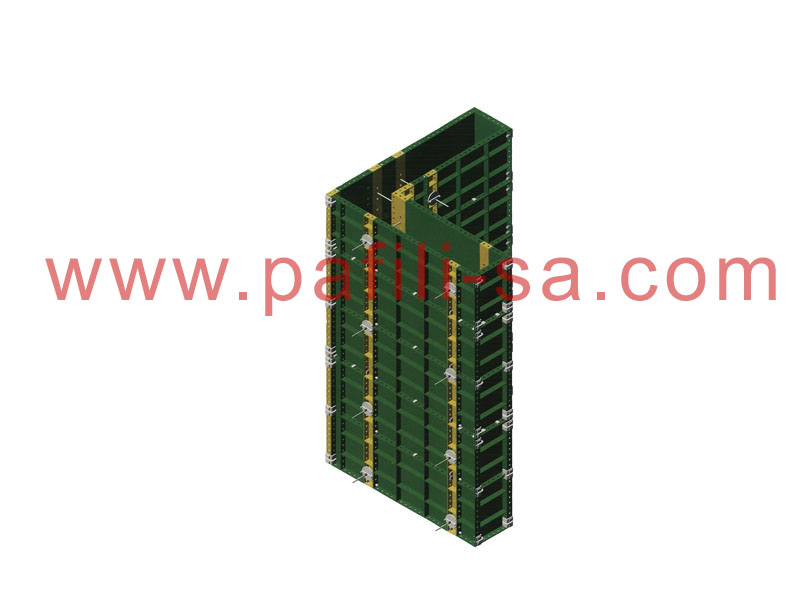

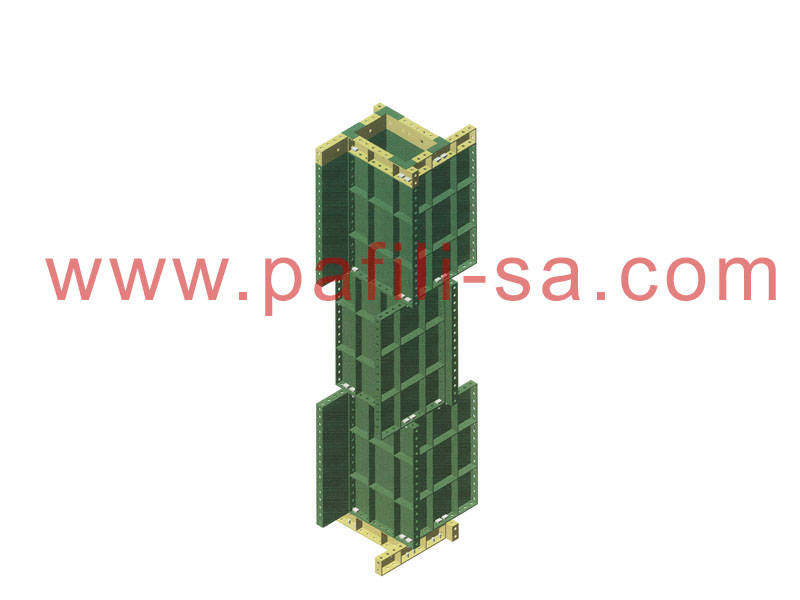

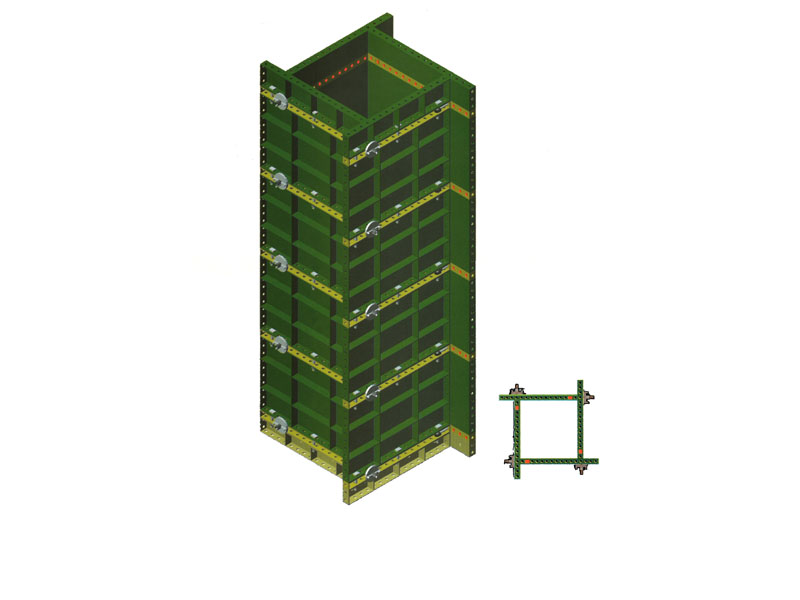

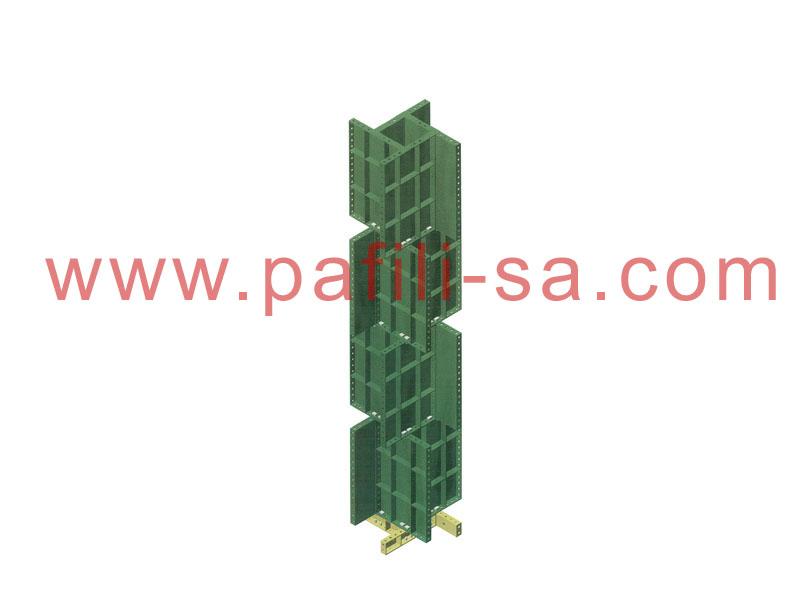

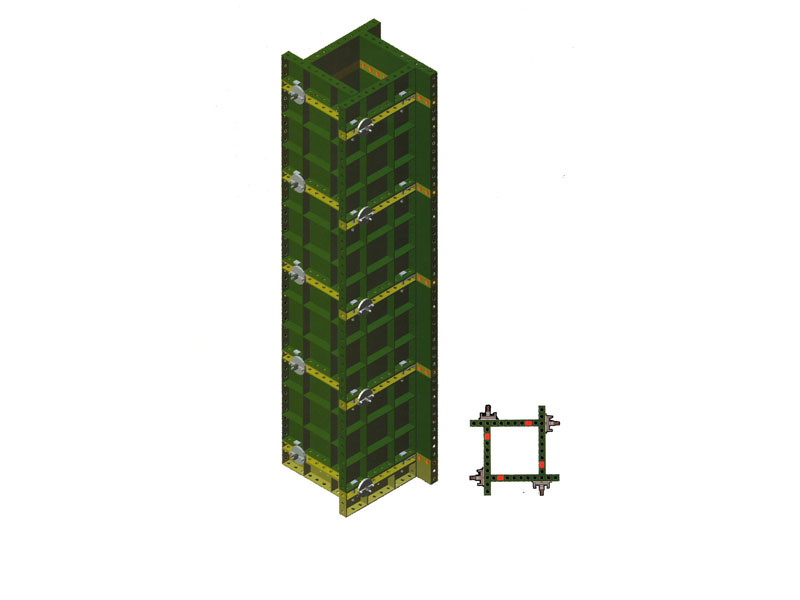

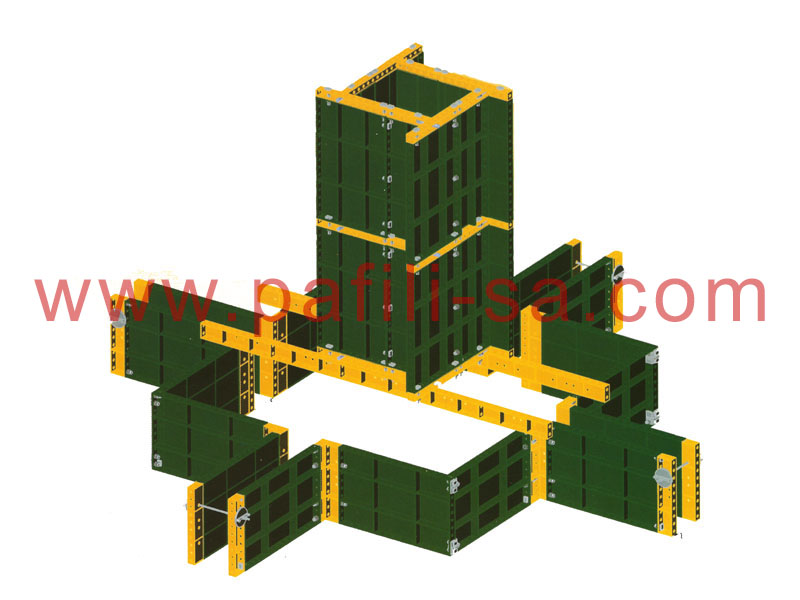

	For Columns 0.50 x 2.50 m 0.80 x 2.50 m

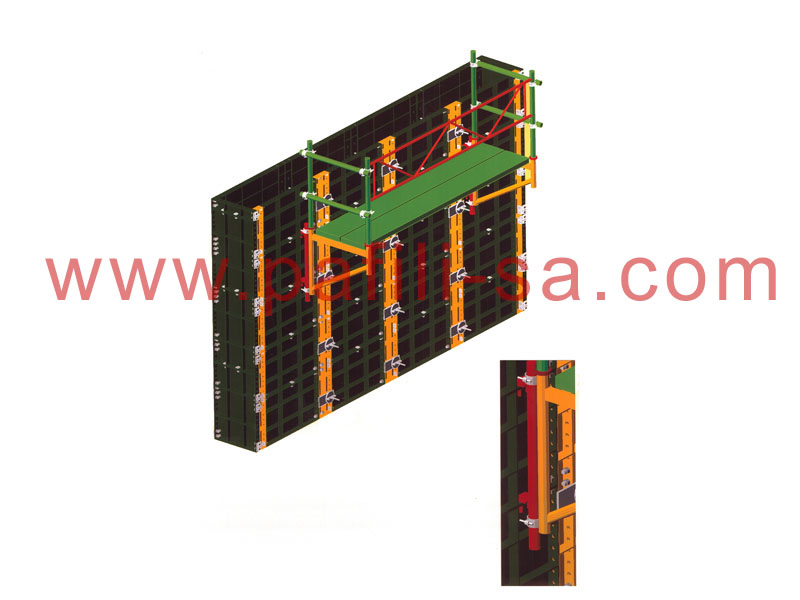

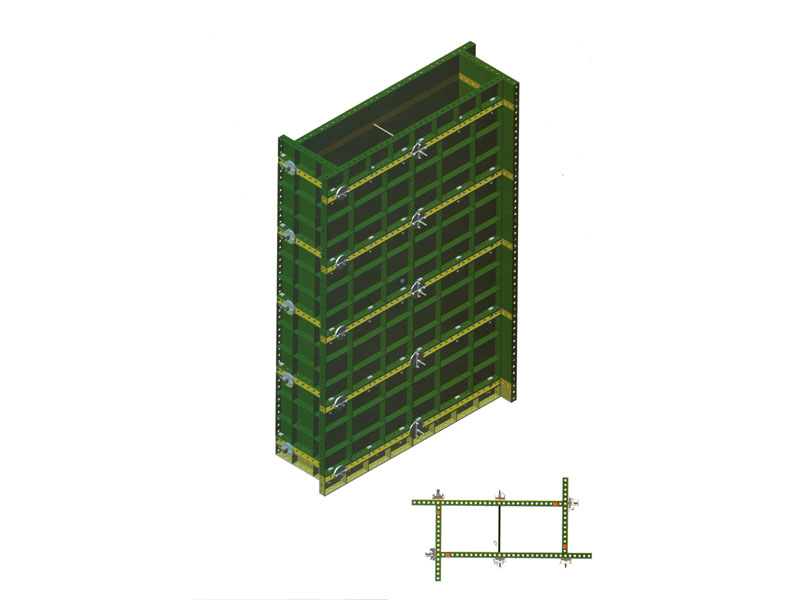

	For Walls 1.00 x 0.50 m 1.00 x 1.00 m
	1.00 x 1.50 m 1.00 x 2.50 m 0.60 x 3.20 m *any other dimension possible upon customer’s request
